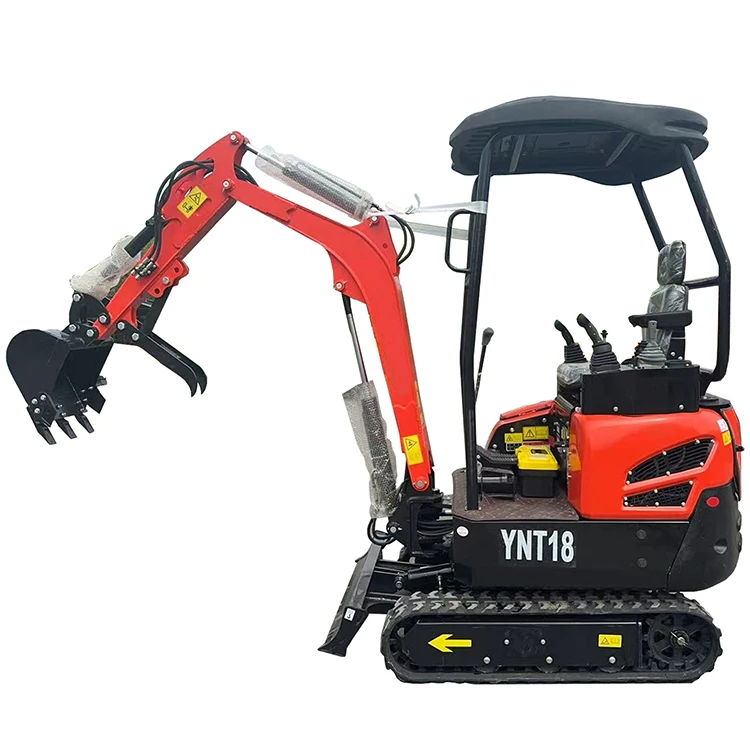

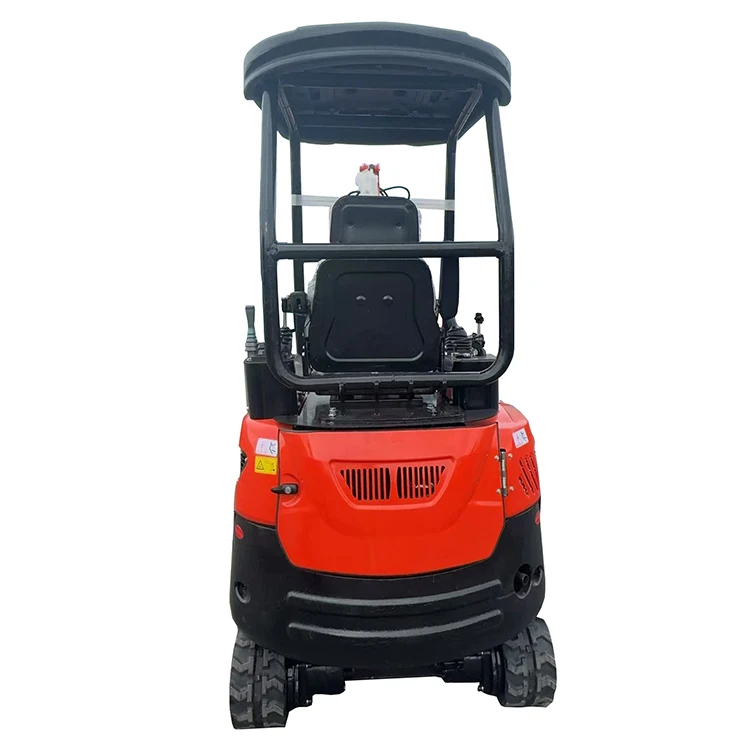

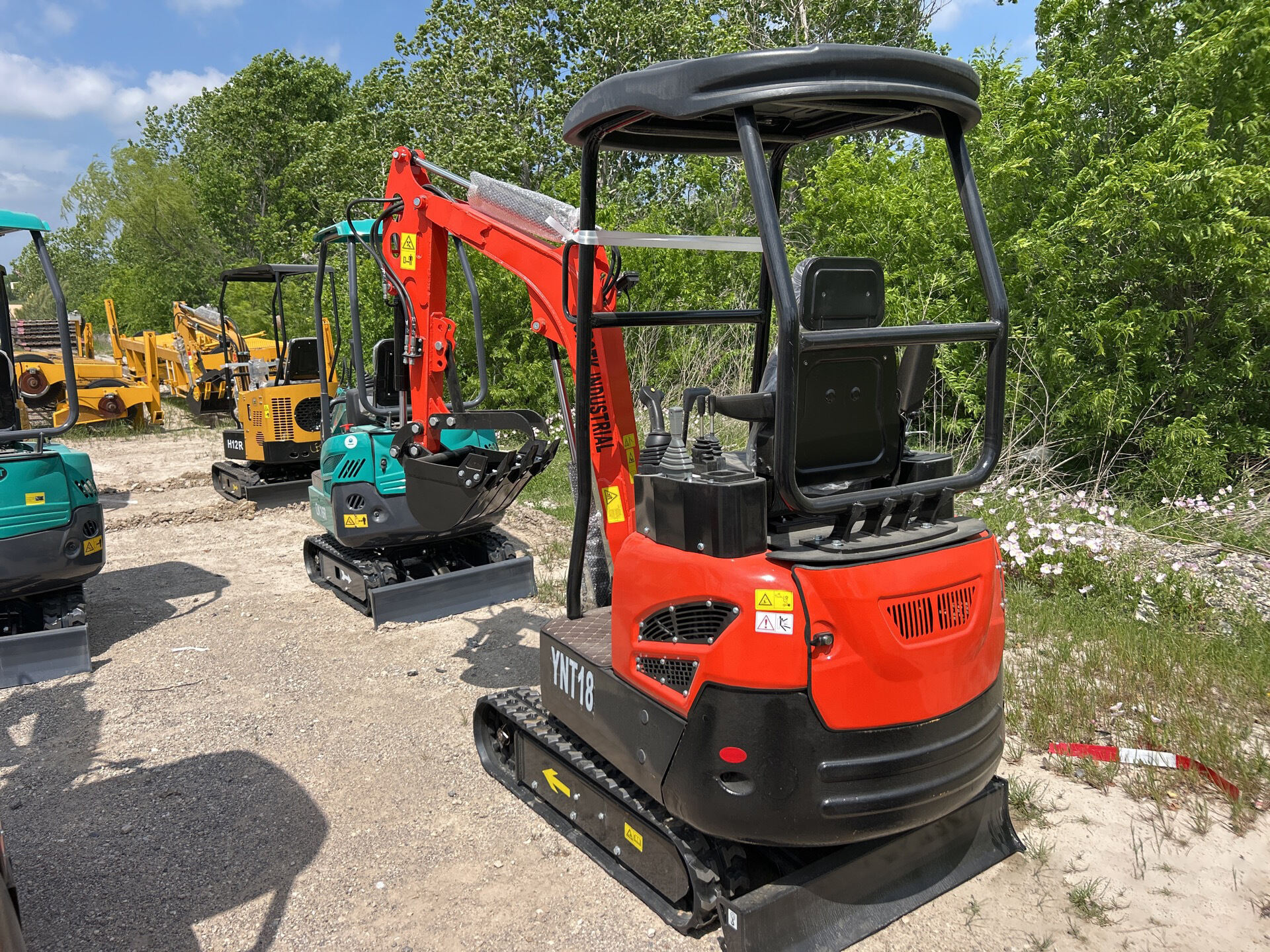

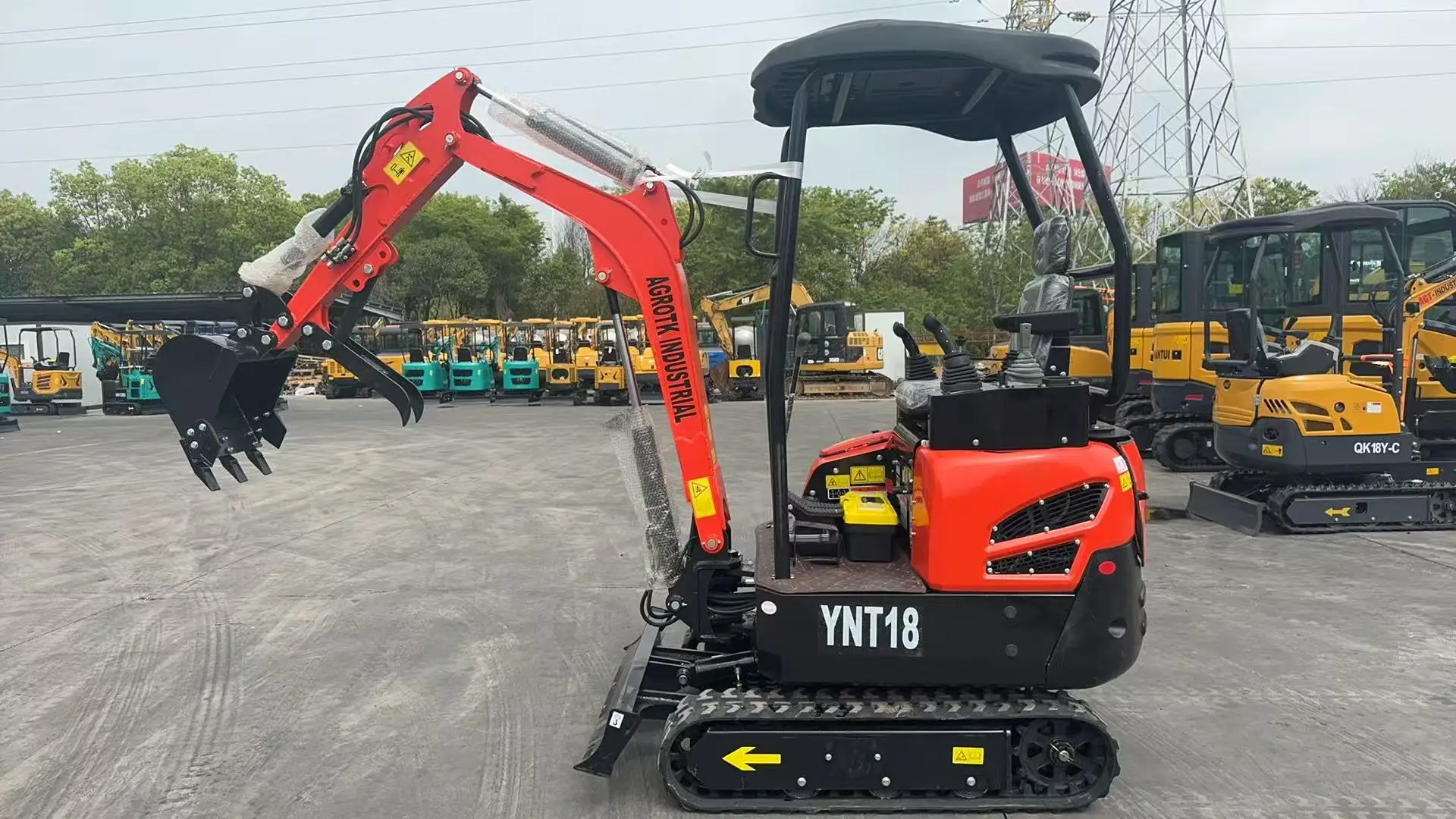

Yanmar Engine 1.8 Ton Crawler Excavator New Mini Crawler Excavation Equipment | YNT18, China Yanmar Engine 1.8 Ton Crawler Excavator New Mini Crawler Excavation Equipment | YNT18 Manufacturers, Suppliers, Factory - Yancheng Cross Machinery Manufacture Co.,Ltd.

Product Description

Specification

Model Information Configuration Status √Standard, △Optional , ×None			YNT18
			YNT18
Basic Performance Parameters	Weight(kg)	1370
		Bucket capacity(m³):	0.04
		Walking speed Low/High speed(Km/h):	0-1.8
		Gradeability(%):	30
		speed of gyration（r/min)	8
		Maximum digging force of the bucket(KN):	21
		Maximum digging force of boom(KN):	16.8
		A Maximum excavation height(mm):	2800
		B Maximum unloading height(mm):	1828
		C Maximum Digging Depth(mm):	2200
		D Maximum vertical excavation depth(mm):	2120
		E Maximum digging radius(mm):	3400
		F Minimum radius of gyration(mm):	1530
		G Minimum gyration radius of the tail(mm):	980
		H Maximum lifting height of bulldozer	120
		I Maximum digging height of bulldozer	300
Size	J Total length(mm):	3410
		K Total width(mm):	1100
		L Total height(mm):	2340
		M Tread width(mm):	1042
		N Track gauge(mm):	920

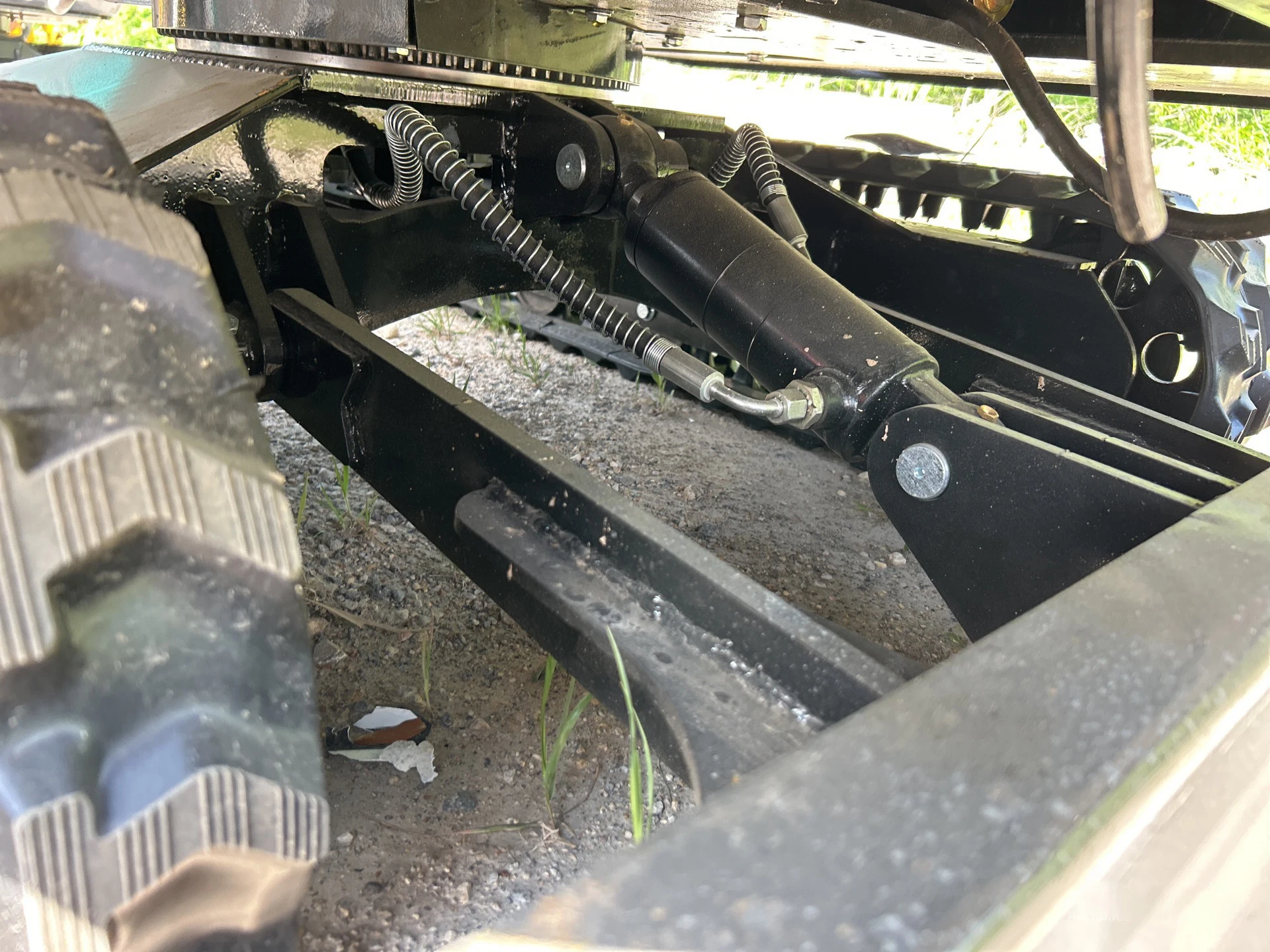

		Bulldozer width/height(mm):	1100/200

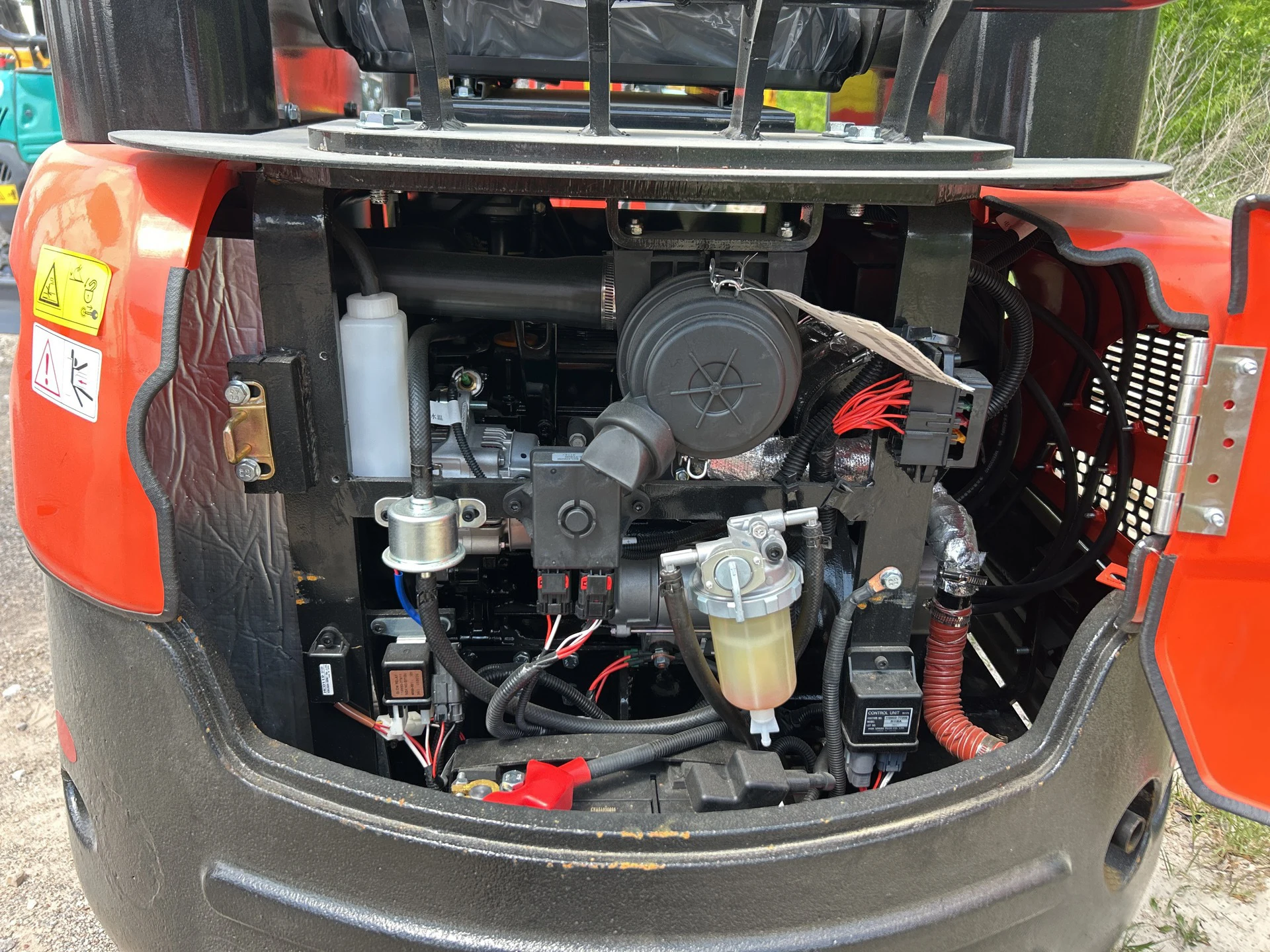

Engine	Engine Brand：	Yanmar
		Engine model:	3TNV74F
		Max Horsepower(ps):	19.31
		Maximum power(Kw):	14.2
		Maximum Rotation Speed(rpm):	2500
		Number of cylinders:	3
		Cooling method:	water cooling
		Engine oil change volume(L):	3.8
		Fuel type:	diesel
		Fuel label:	0#
		Theoretical fuel consumption(L/h):	/
Hydraulic System	Main pump type/model:	gear pump/10+03
		Main pump brand：	Tianjin Walking
		Rated set pressure(Mpa):	20
		Max. flow rate of main pump(L/min):	32.5
		multi-way valve：	10-way semi hydraulic control multi way valve
		Multi way valve brand：	Tai Heng
		Rated set pressure(Mpa):	17

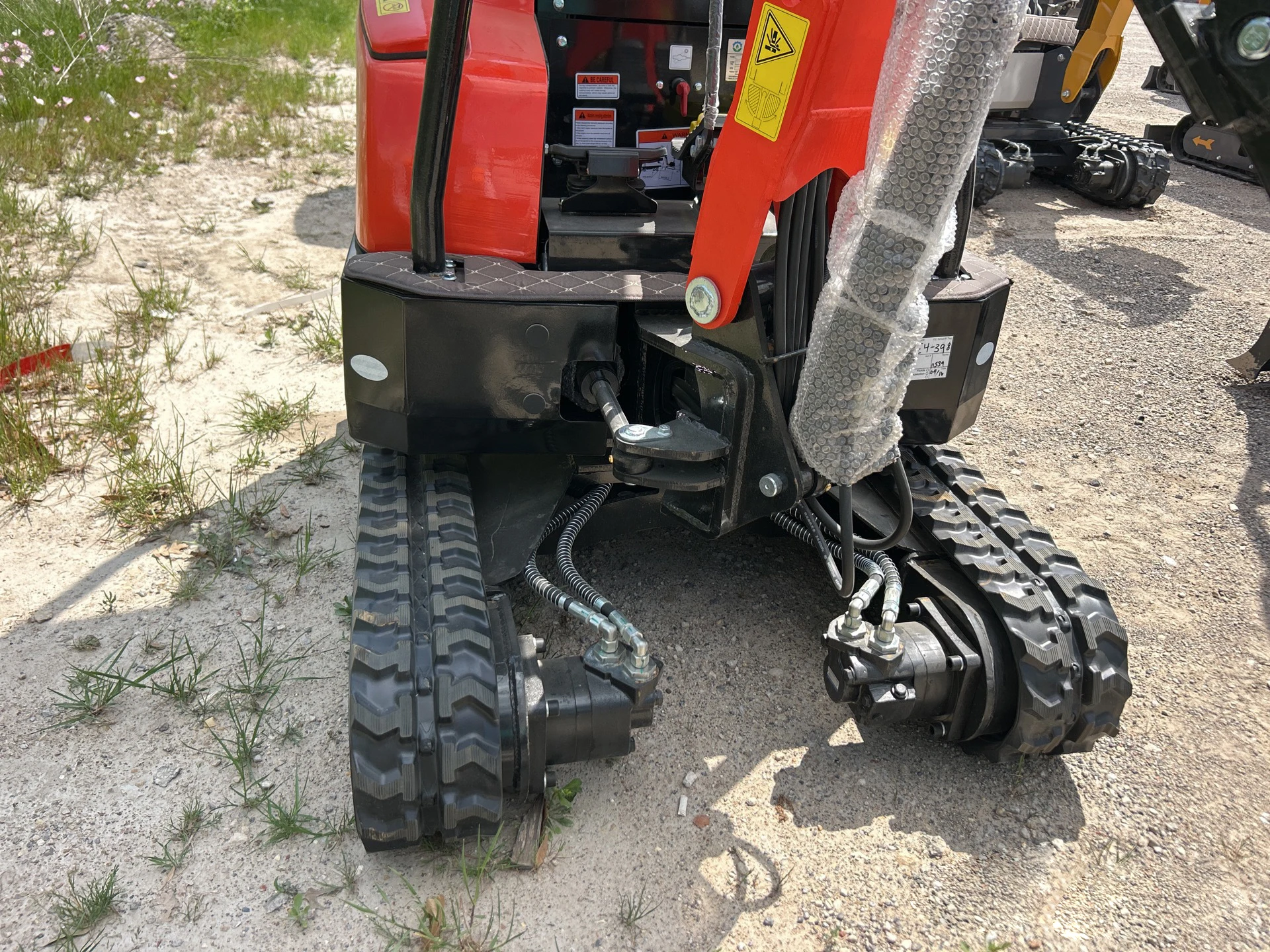

		Walking hydraulic motor type:	BMK6-390
		Walking Motor Brand：	SANYO
		Motor Displacement:	390
		Rotary hydraulic motor type:	BM10-315
		Displacement:	315
Track	〇-Rubber (track width * pitch * number of sections):	1807241
Configuration	Tensioning form	Mechanical tensioning
Tank	fuel tank(L):	13
Tank		hydraulic tank（L）	19
