Specification

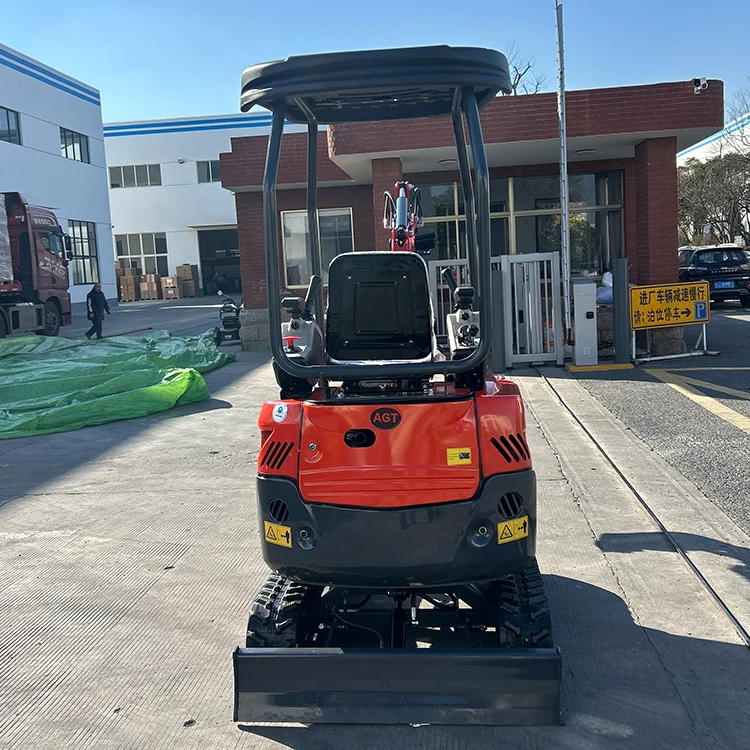

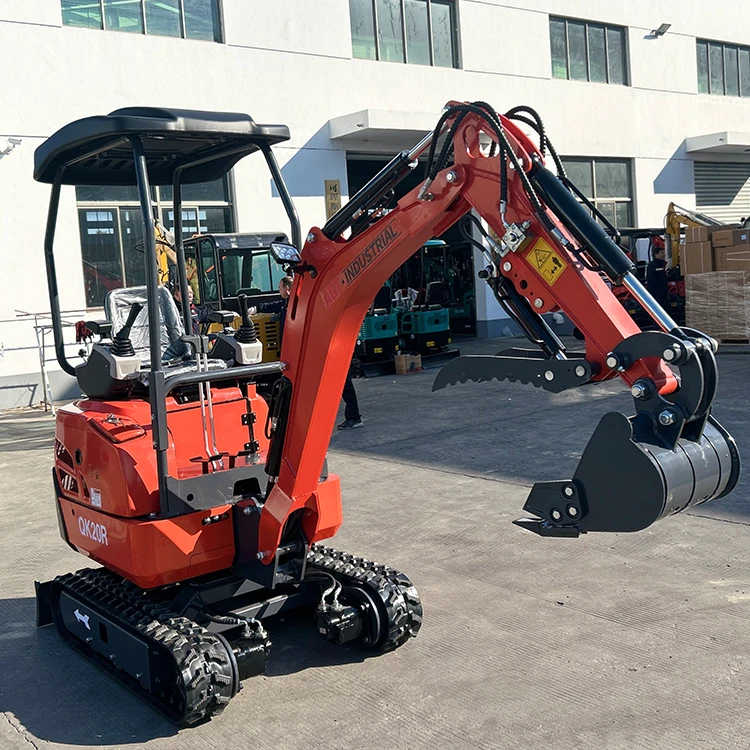

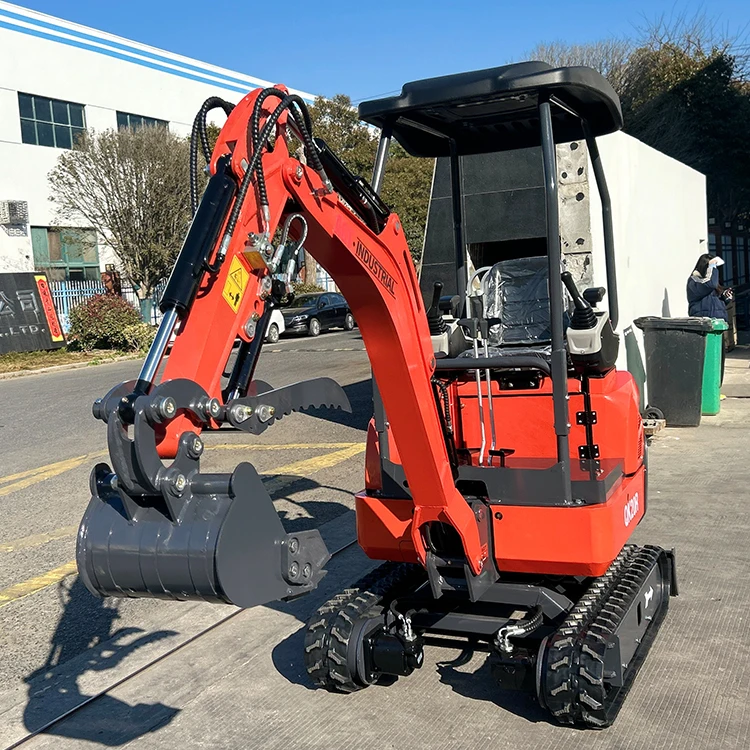

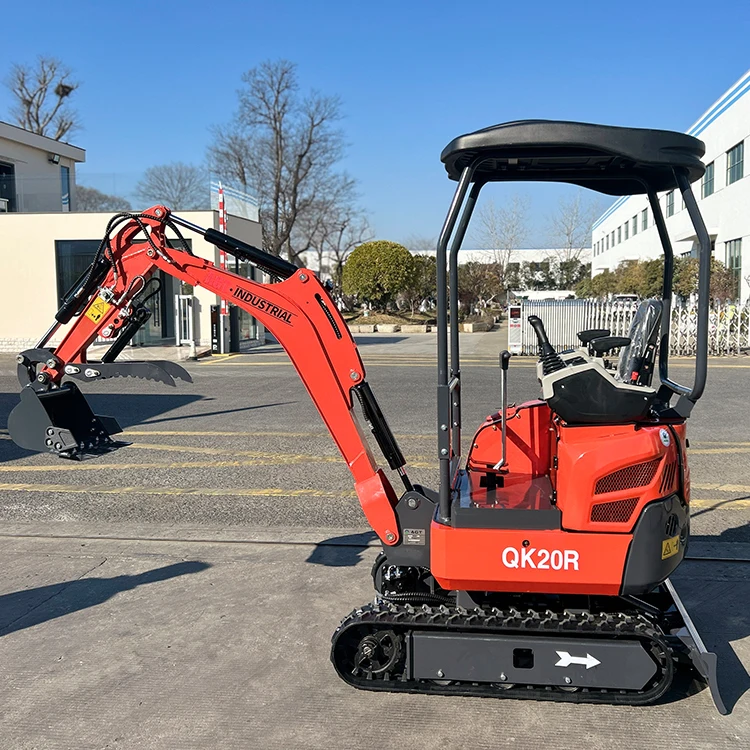

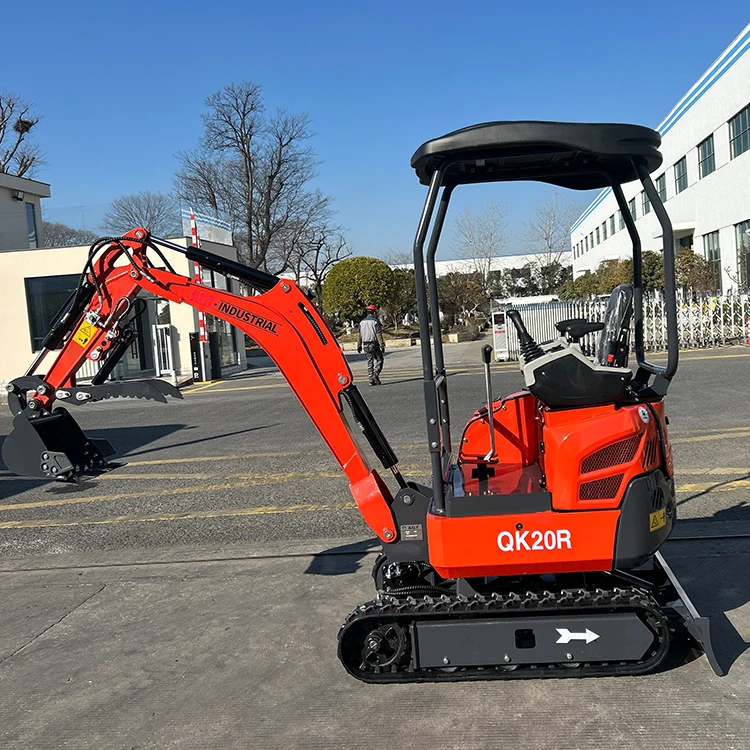

Model Information Configuration Status √Standard, △Optional , ×None			QK20R


Basic Performance Parameters	Working Weight(kg)	1020
		Bucket capacity(m³):	0.03
		Travel speed low/high speed(Km/h)(Km/h):	0-1.8
		Climbing ability(%):	11
		A Maximum Digging Height(mm)(mm):	2560
		B Maximum Unloading Height(mm):	1800
		C Maximum Digging Depth(mm):	1700
		E Max. digging radius(mm):	3075
Size	J Overall Length(mm)
		K Overall Width(mm)	1100
		L Overall Height(mm)	2422
		M Wheel track(mm):
		Bulldozer Width/Height(mm):	907/200

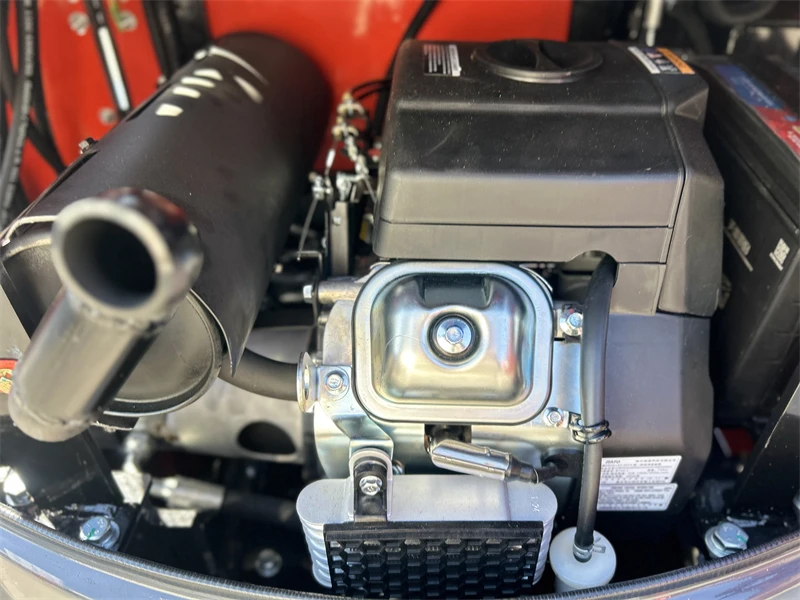

Engine	Engine Brand	Rato
		Engine Model	740
		Max. power(Kw)	17.5
		Max. speed(rpm)	3600
		Cylinders	2
		Cooling method	forced air cooling
		Engine oil change quantity(L)	1.4
		Fuel Type	gasoline
		Fuel Grade	#95
		Theoretical fuel consumption(L/h)	0.5/2
Hydraulic System	Main pump type/model	GP5183
		Main pump brand	Tianjin Walking
		Rated set pressure(Mpa)	16.8
		Maximum flow rate of main pump(L/min)	21.6
		Multi-way valve	4+4
		Brand of Multi-way valve	Taiheng
		Rated Set Pressure(Mpa)	16.3
		Hydraulic Linear Motor type	BM6-390
		Linear Motor Brand	Cohen Liyuan
		Hydraulic Servo Motor type	390
		Rotary hydraulic motor type	BM2-315
		Displacement	315
Track	〇-Rubber (bandwidthpitchnumber of sections)	1807241
