MX-MRT14
Model Information
Configuration Status
√Standard, △Optional , ×None
|
MX-MRT14
|
|
Basic Performance Parameters |
||
Working Weight(kg) |
700 |
|
Bucket capacity(m³) |
0.1 |
|
Travel speed low/high speed(Km/h) |
4 |
|
Maximum lifting force (Kg) |
200 |
|
Maximum working height(mm) |
2285 |
|
Maximum pin height (mm) |
1967 |
|
Maximum unloading height(mm) |
1575 |
|
Loading distance at maximum unloading height (mm). |
661 |
|
Wheelbase(mm) |
905 |
|
Ground clearance(mm) |
163 |
|
Bucket discharge angle |
23° |
|
Equipment Body |
||
Bucket width(mm) |
1120 |
|
Overall Length(mm) |
2135/2432 |
|
Overall Width(mm) |
904 |
|
Overall Height(mm) |
1364 |
|
Body width(mm) |
810 |
|
Slewing radius(mm) |
1493 |
|

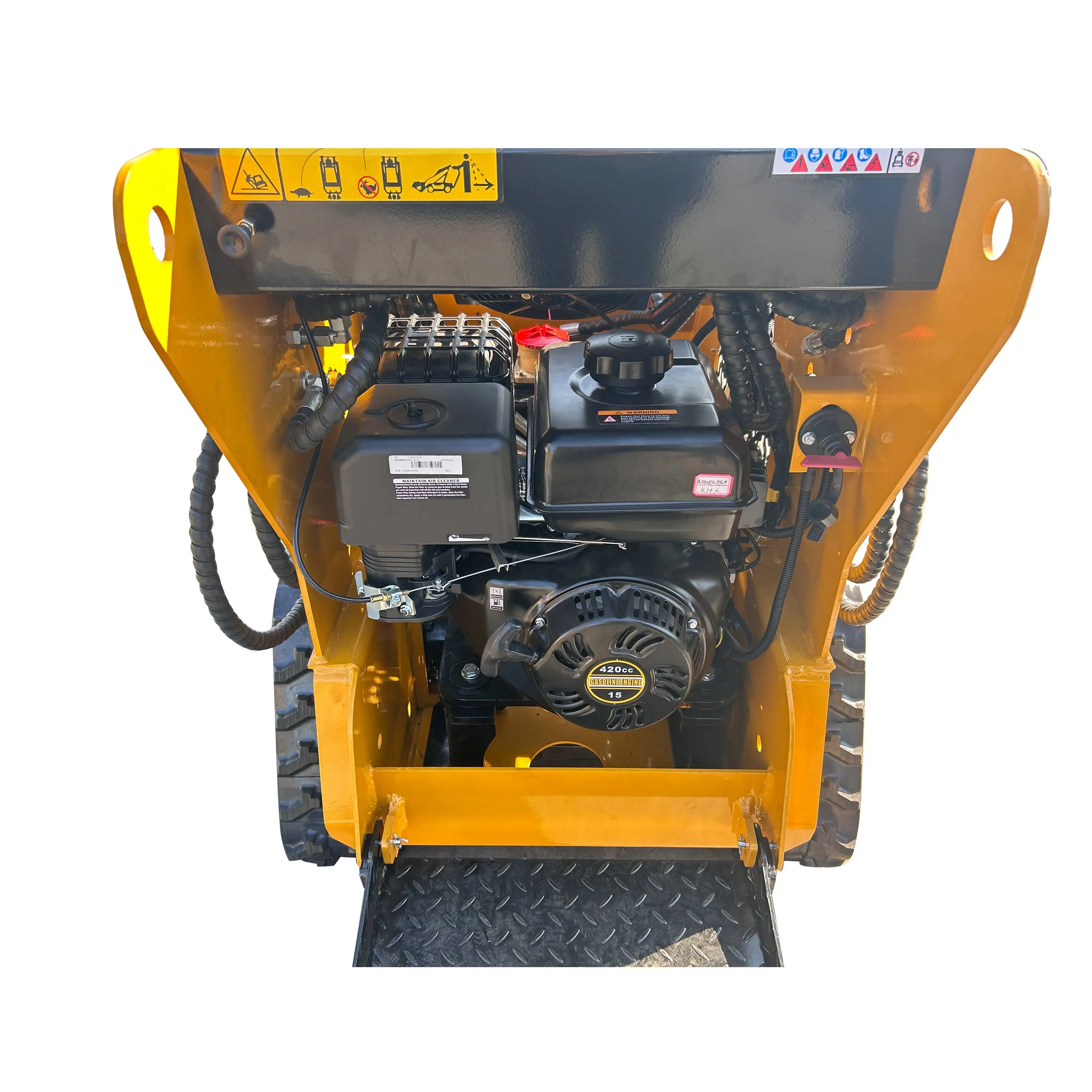

Engine |
||
Engine Brand |
Rato |
|
Engine model |
R420D |
|
Maximum horsepower(ps) |
13.5 |
|
Maximum power(Kw) |
9.8 |
|
Maximum speed(rpm) |
3600 |
|
Number of cylinders |
1 |
|
Cooling method |
Fan cooling |
|
Engine oil replacement(L) |
1.1 |
|
Fuel Type |
Gasoline |
|
Fuel Grade |
92# |
|
Tracks |
||
△-Rubber (bandwidth*pitch*number of sections) |
180*72*37 |
|
Fuel tank |
||
Fuel tank(L) |
6.6 |
|
Hydraulic oil tank(L) |
33 |
|
