NEW Kubota Engine Mini Compact Track Loader Attachments with 1044mm Bucket, China NEW Kubota Engine Mini Compact Track Loader Attachments with 1044mm Bucket Manufacturers, Suppliers, Factory - Yancheng Cross Machinery Manufacture Co.,Ltd.

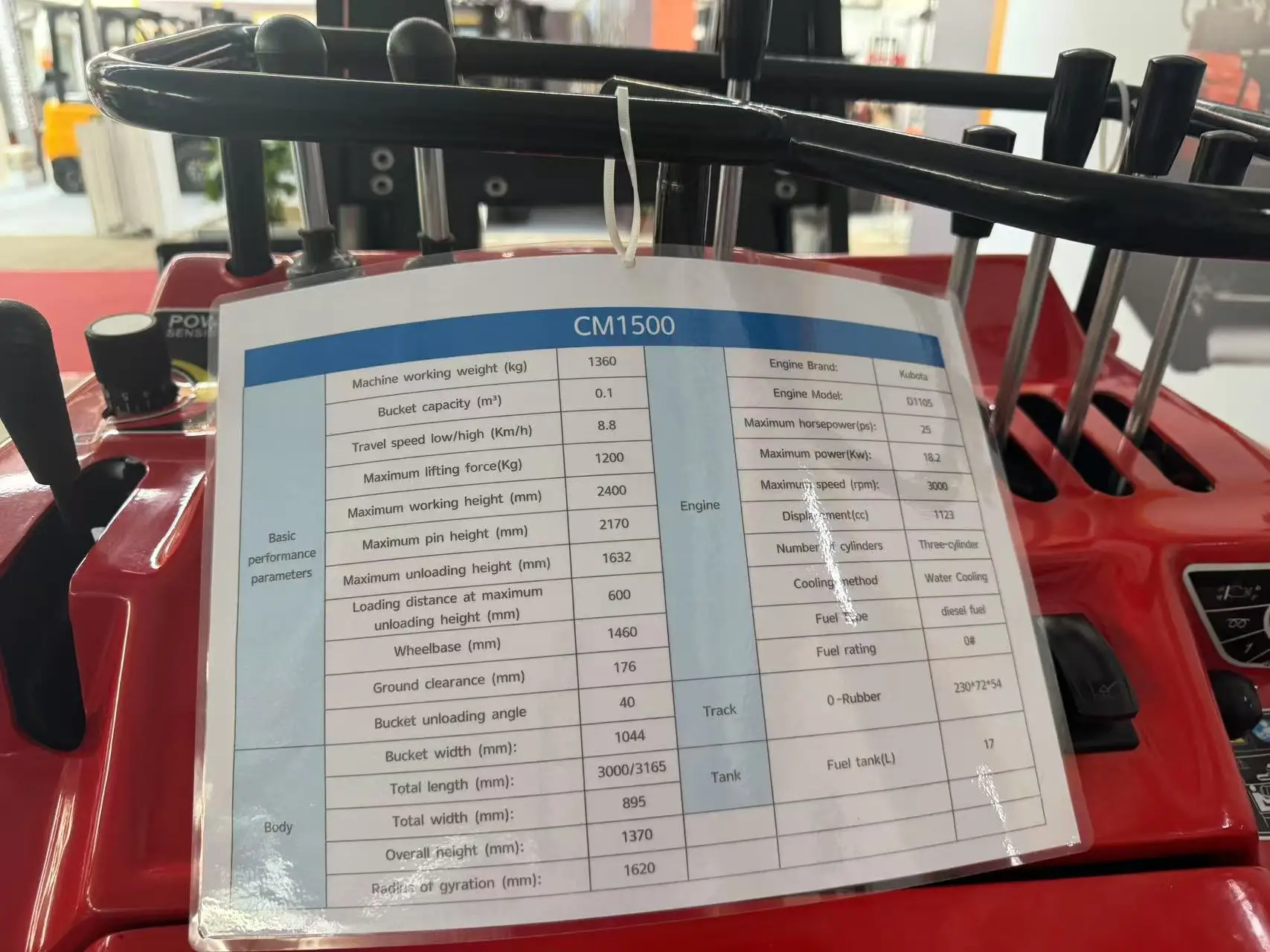

Specification

CM1500
Basic Performance Parameters	Weight(kg)	1360
		Bucket capacity(m³):	0.1
		Walking speed Low/High speed(Km/h):	8.8
		Maximum lifting force(Kg):	1200
		Maximum working heightC(mm):	2400
		Maximum pin heightB(mm):	2170
		Maximum unloading heightA(mm):	1632
		Load distance at maximum unloading height G(mm):	600
		Tread widthH(mm):	1460
		Ground clearanceF(mm):	176
		Bucket Dumping angleL	40
Size	Bucket widthE(mm):	1044
		Total lengthJ/K(mm):	3000/3165
		Total widthN(mm):	895
		Total heightD(mm):	1370
		radius of gyrationM(mm):	1620
Engine	Engine Brand：	Kubota
		Engine model:	D1105
		Max Horsepower(ps):	25
		Maximum power(Kw):	18.2
		Maximum Rotation Speed(rpm):	3000
		Displacement(cc):	1123
		Number of cylinders:	Three cylinders
		Cooling method:	water-cooling
		Fuel type:	diesel
		Fuel label:	0#
Hydraulic System	Main pump type/model:	piston pump
		Rated set pressure(Mpa):	20
		Max. flow rate of main pump(L/min):	55
		multi-way valve：	2+4
		multi-way valve brand：	Mechanical valve group
		Rated set pressure(Mpa):	20
		Walking hydraulic motor type:	piston motor
		Motor Displacement:	400
Track	〇-Rubber (track width * pitch * number of sections):	2307254
Configuration	armrest	●
Configuration		Tensioning form	Hydraulic tensioning
Tank	fuel tank(L):	17

Products Description

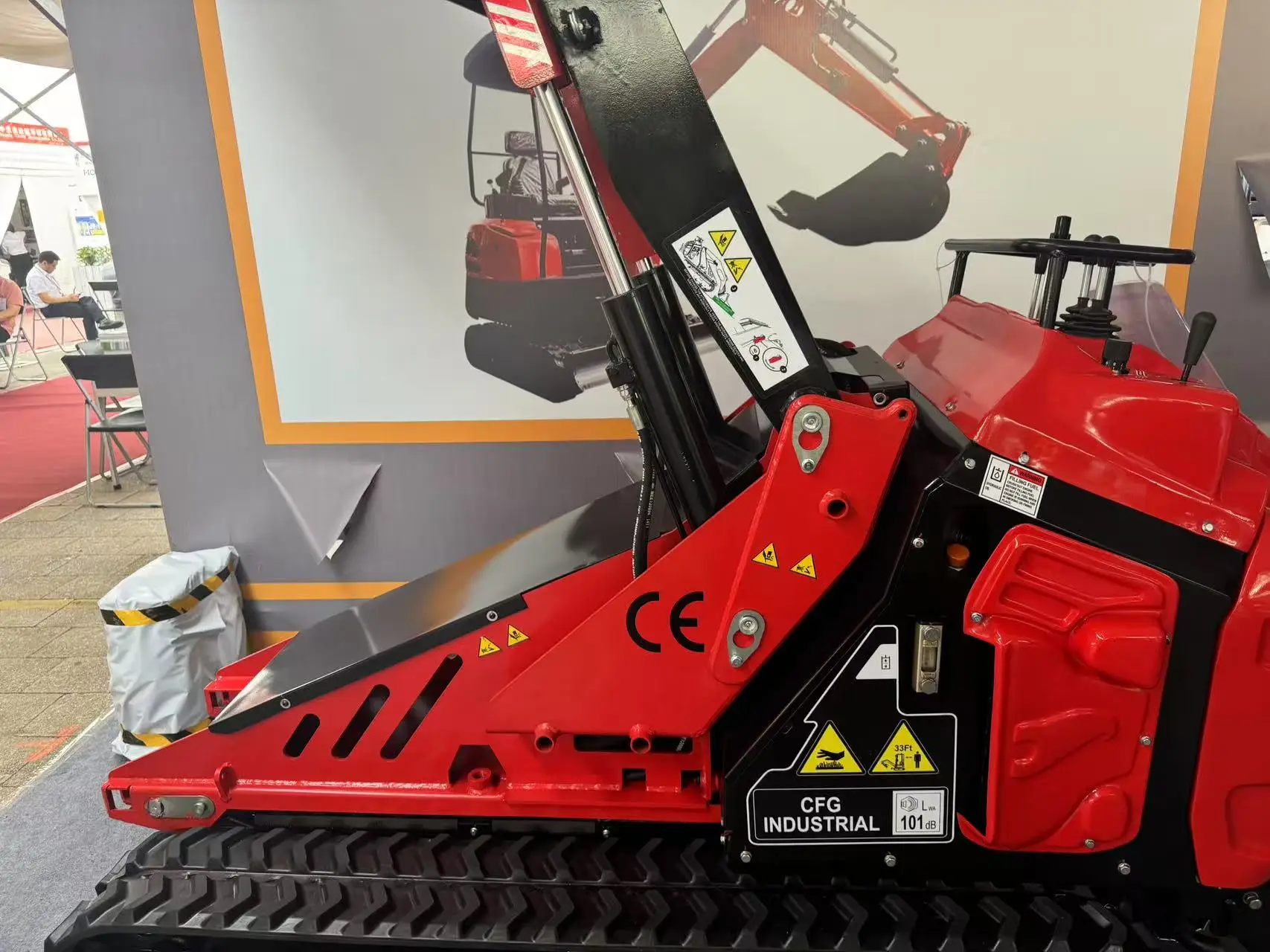

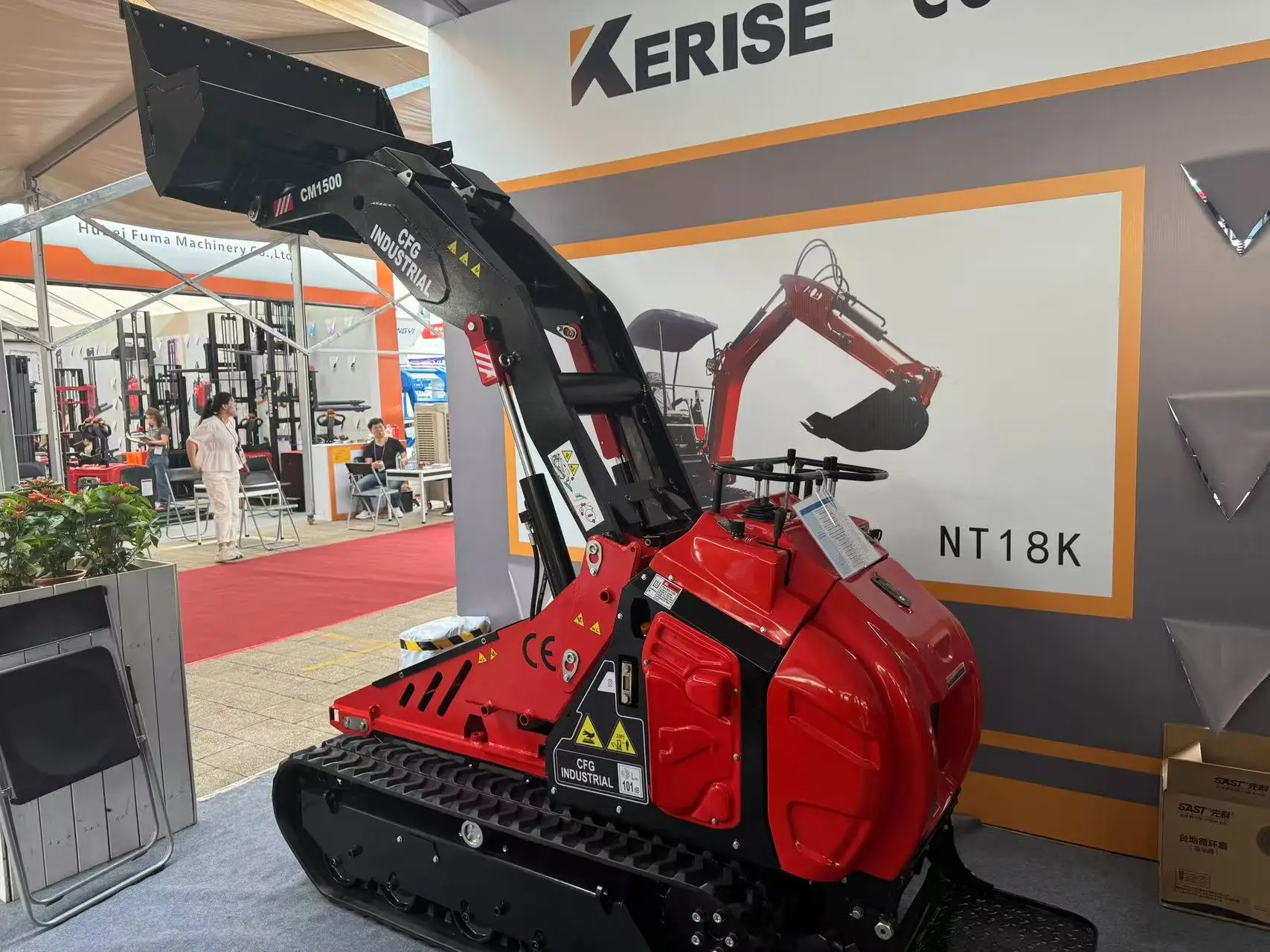

Mini Skid Steer Loader
