Product Description

Specification

Basic Performance Parameters
Specifications
Operating weight	kg	2800
Bucket capacity	m³	0.04～0.13
Engine
Engine Brand		Kubota
Engine model		D1105
Rated power	kW/rpm	15.4/2400
Max. torque	N ·m/rpm	71.4/1600
Displacement	L	1.123
Hydraulic System
Main pump type		piston pump
Max. flow rate of main pump	L/min	67.2
Rated set pressure	Mpa	24.5
Pilot pressure	Mpa	3.3
Performance
speed of gyration	rpm	9
Walking speed	km/h	4.4/2.6
Gradeability	%	57
Ground pressure	kPa	27
Fuel tank capacity
Fuel tank	L	26
Hydraulic tank	L	24

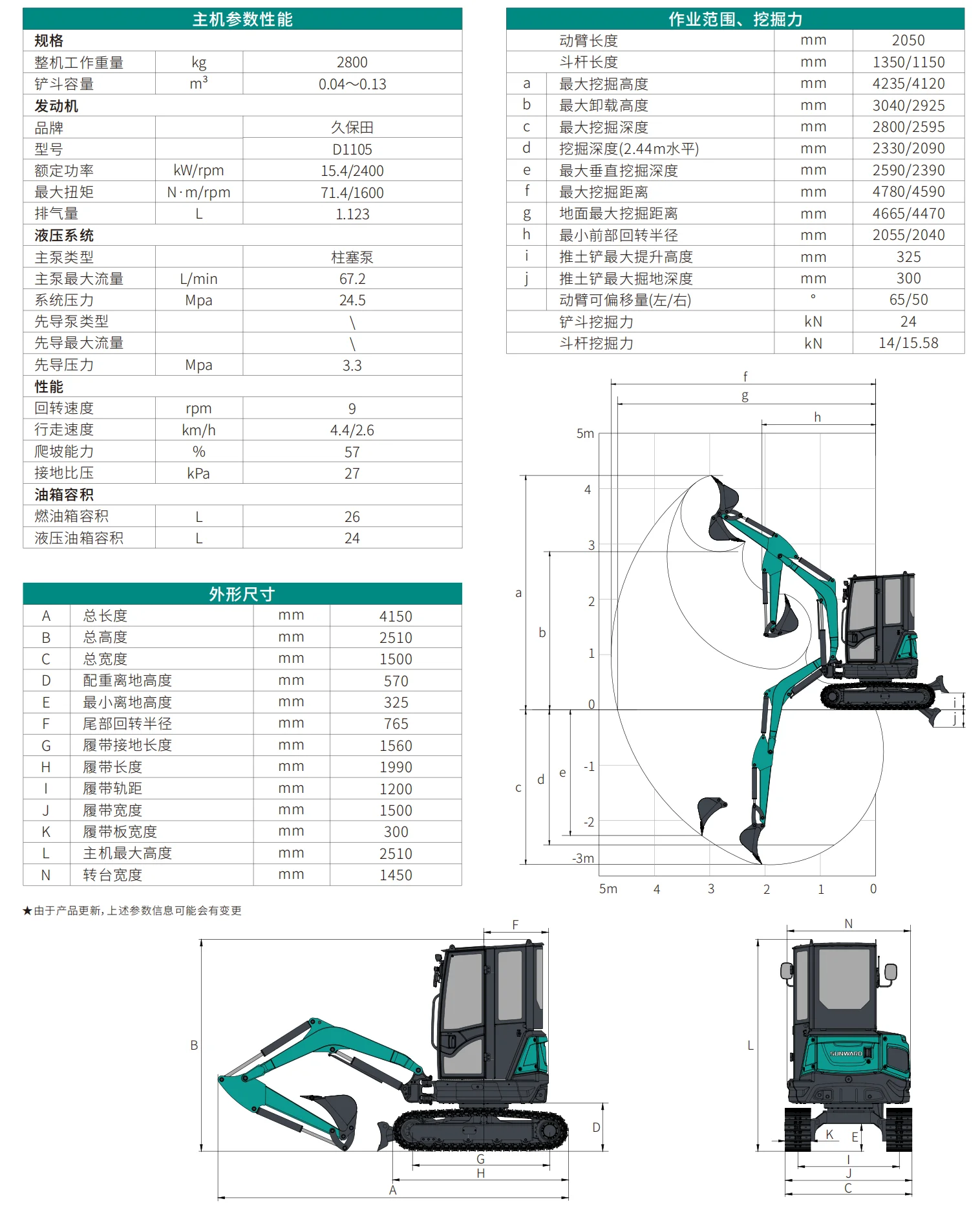

Exterior dimensions
Working Range Parameters	Max. digging height	4235/4120mm
		Max. dumping height	3040/2925mm
		Max. digging depth	2800/2595mm
		Max. vertical digging depth	2590/2390mm
		Max. digging radius	4780/4590mm
		Max. reach at ground level	4665/4470mm
		Max. lifting height of dozer blade	325mm
		Max. digging depth of dozer blade	300mm
		Min. swing radius	2055/2040mm
Machine Dimension Parameters	Outline dimension (L×W×H)	4150 × 1500 × 2510mm
		Wheelbase	1560mm
		Overall length of crawler	1990mm
		Platform ground clearance	570mm
		Tail swing radius	765mm
		Chassis width	1500mm
		Track shoe width	300mm
		Chassis ground clearance	325mm
		Crawler height	475mm
		Overall length	4150mm
		Overall height of cab	2510mm
		Upper-structure width	1450mm
		Dozer blade dimension (L×W)	1500 × 325mm

Products Description

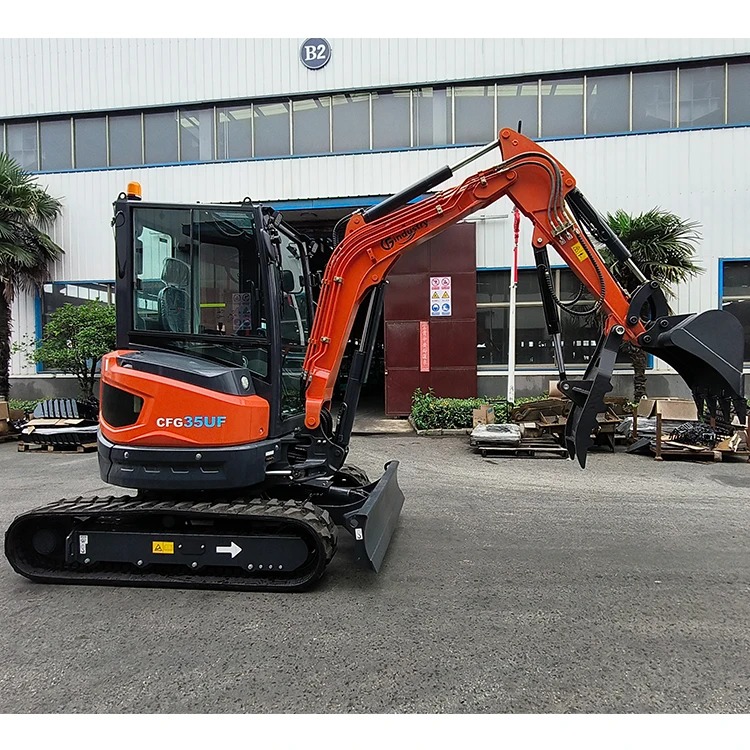

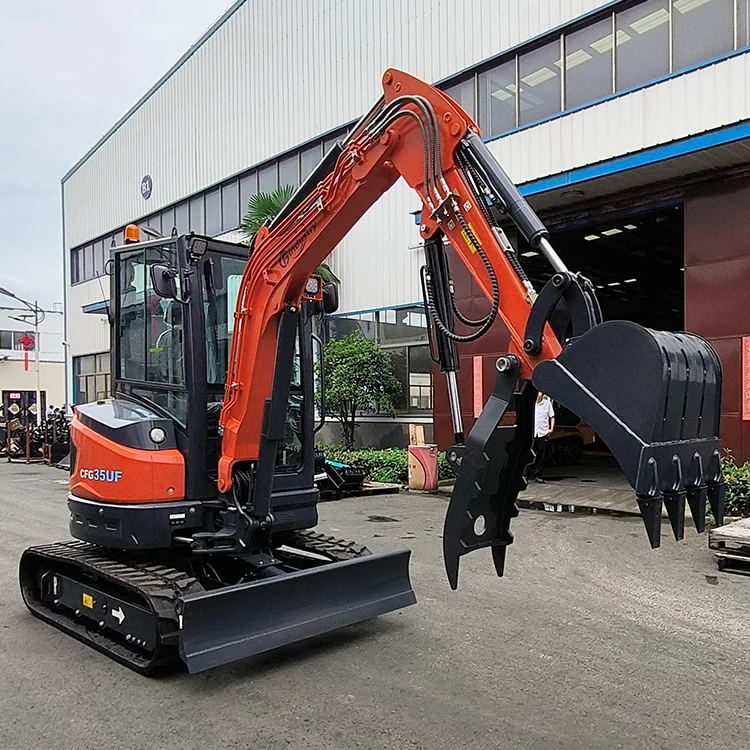

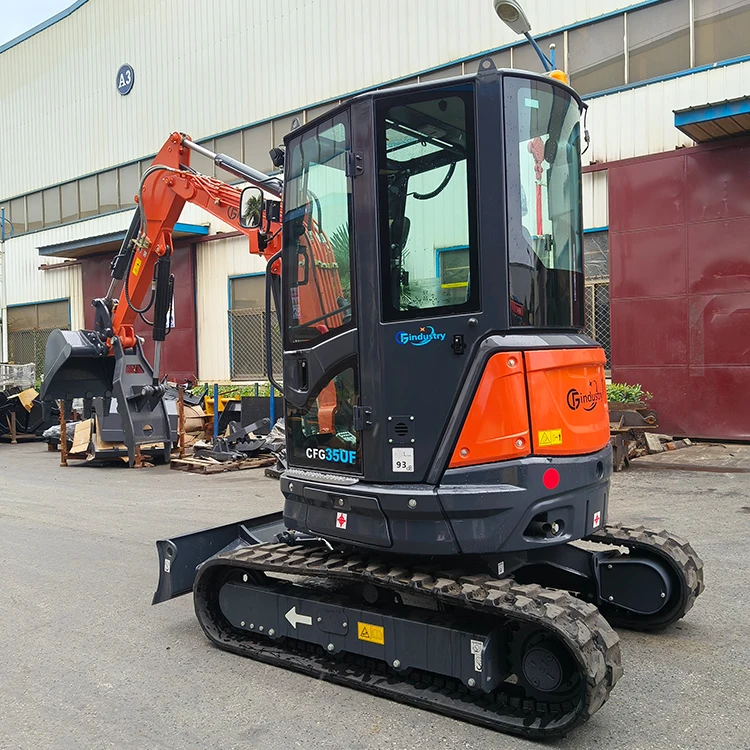

free shipping 20hp compact excavator kubota engine farm use small excavator cfg35uf-1

Feautre:

1.Powerful and Efficient
Equipped with a KUBOTA engine compliant with T4F, Stage V, and China IV standards, paired with a high-performance hydraulic system for smooth and precise multi-function operations.
2.Easy Operation

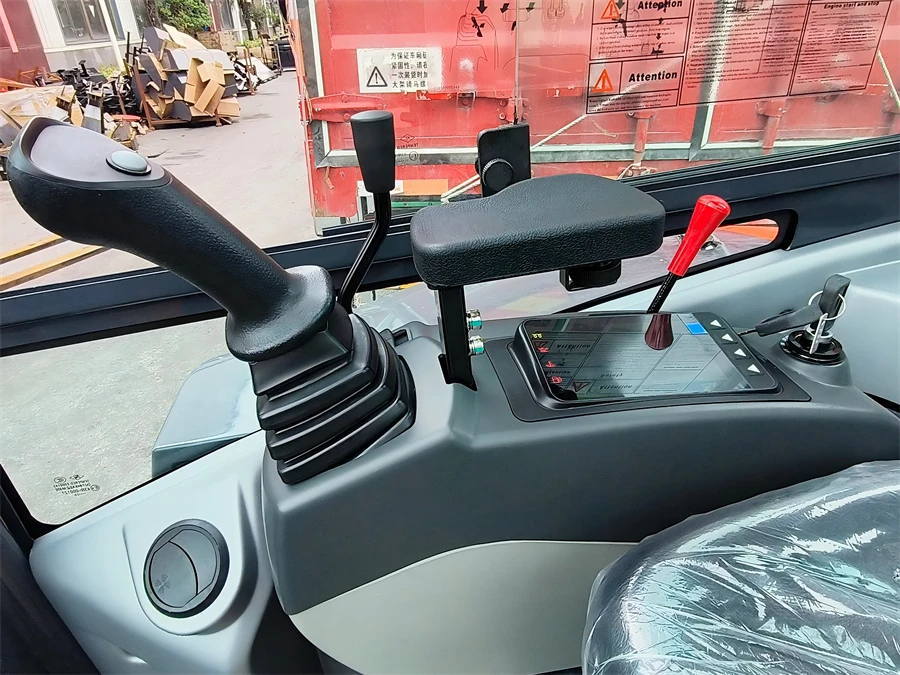

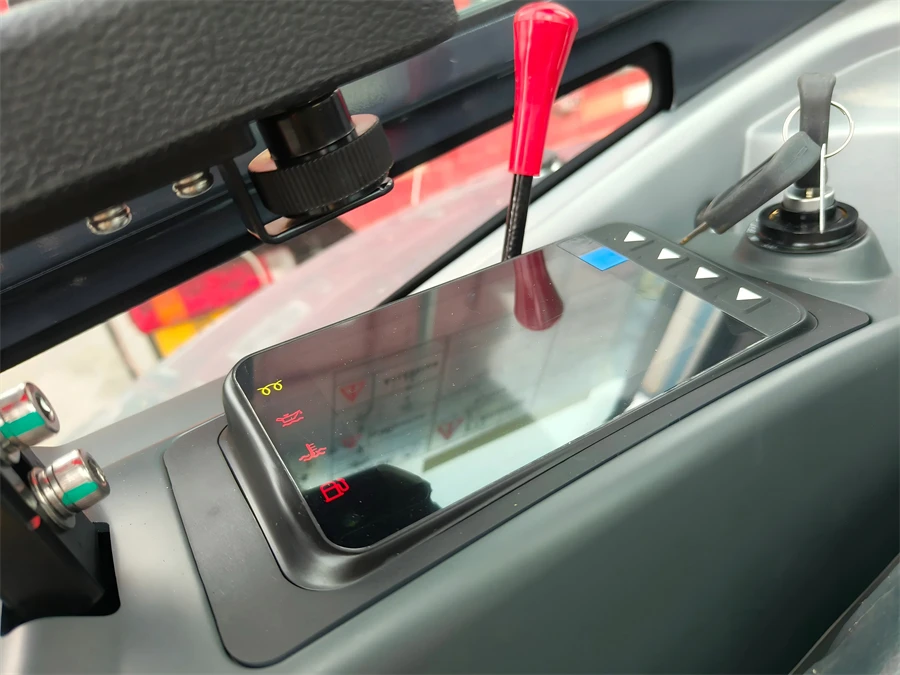

User-friendly control panel with clear and simple switch functions.
3.Low Maintenance
Fully openable engine hood and service doors allow quick access for daily checks and filter replacement. Convenient valve access reduces the need to remove covers during maintenance.
