Model Information Configuration Status √Standard, △Optional , ×None |
KKT
|
|||
Basic Performance Parameters |
||||
Working Weight(kg) |
1300 |
|||
Bucket capacity(m³) |
0.2 |
|||
Travel high speed(Km/h) |
4.7 |
|||
Maximum lifting force (Kg) |
400 |
|||
Maximum working height(mm) |
2695 |
|||
Maximum unloading height(mm) |
1625 |
|||
Wheelbase(mm) |
1055 |
|||
Ground clearance(mm) |
230 |
|||
Equipment Body |
||||
Overall Length(mm) |
2752 |
|||
Overall Width(mm) |
1040 |
|||
Overall Height(mm) |
1610 |
|||
Bucket Width(mm) |
1040 |
|||
Body Width(mm) |
954 |
|||

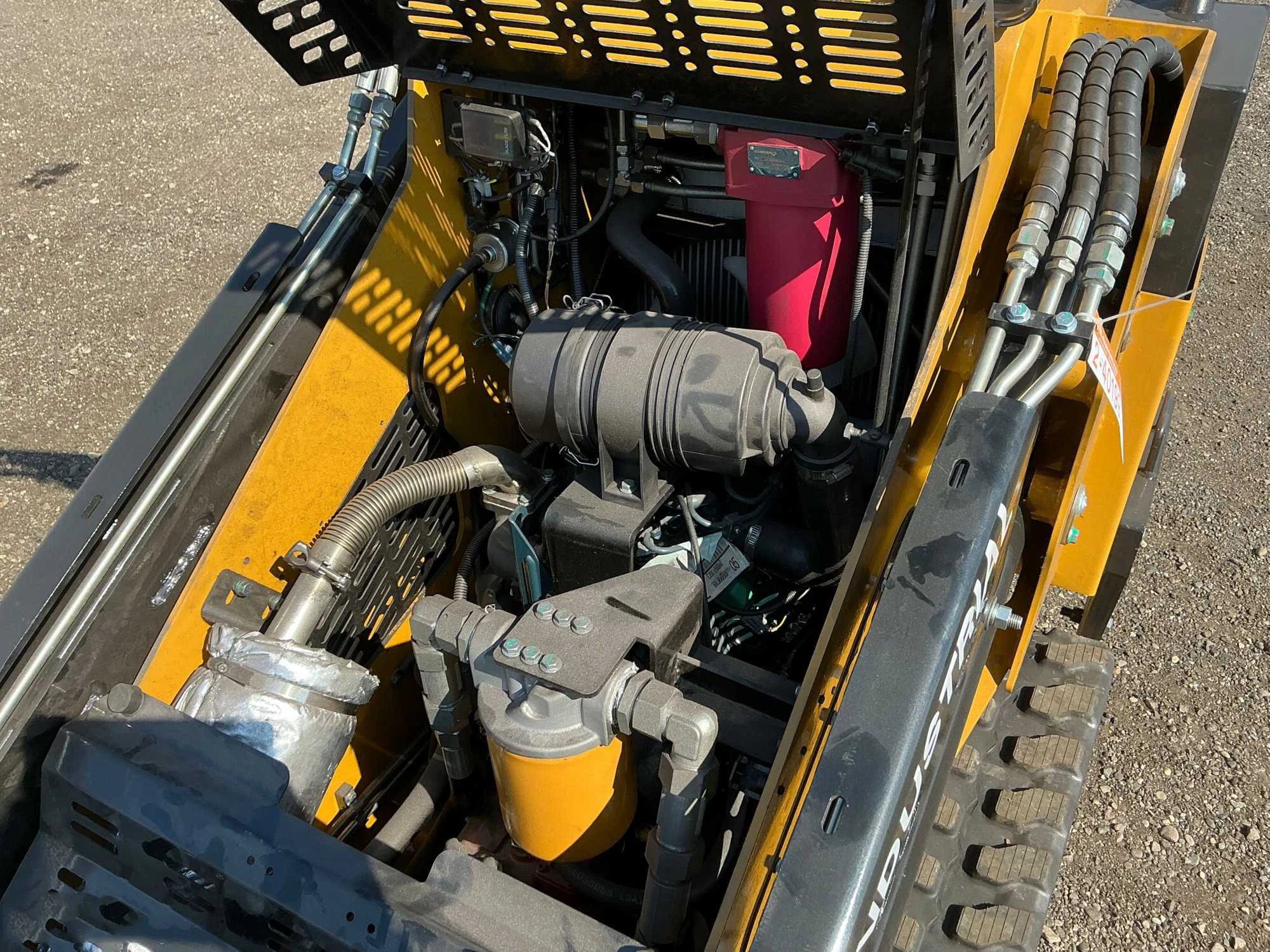

Engine |
||||

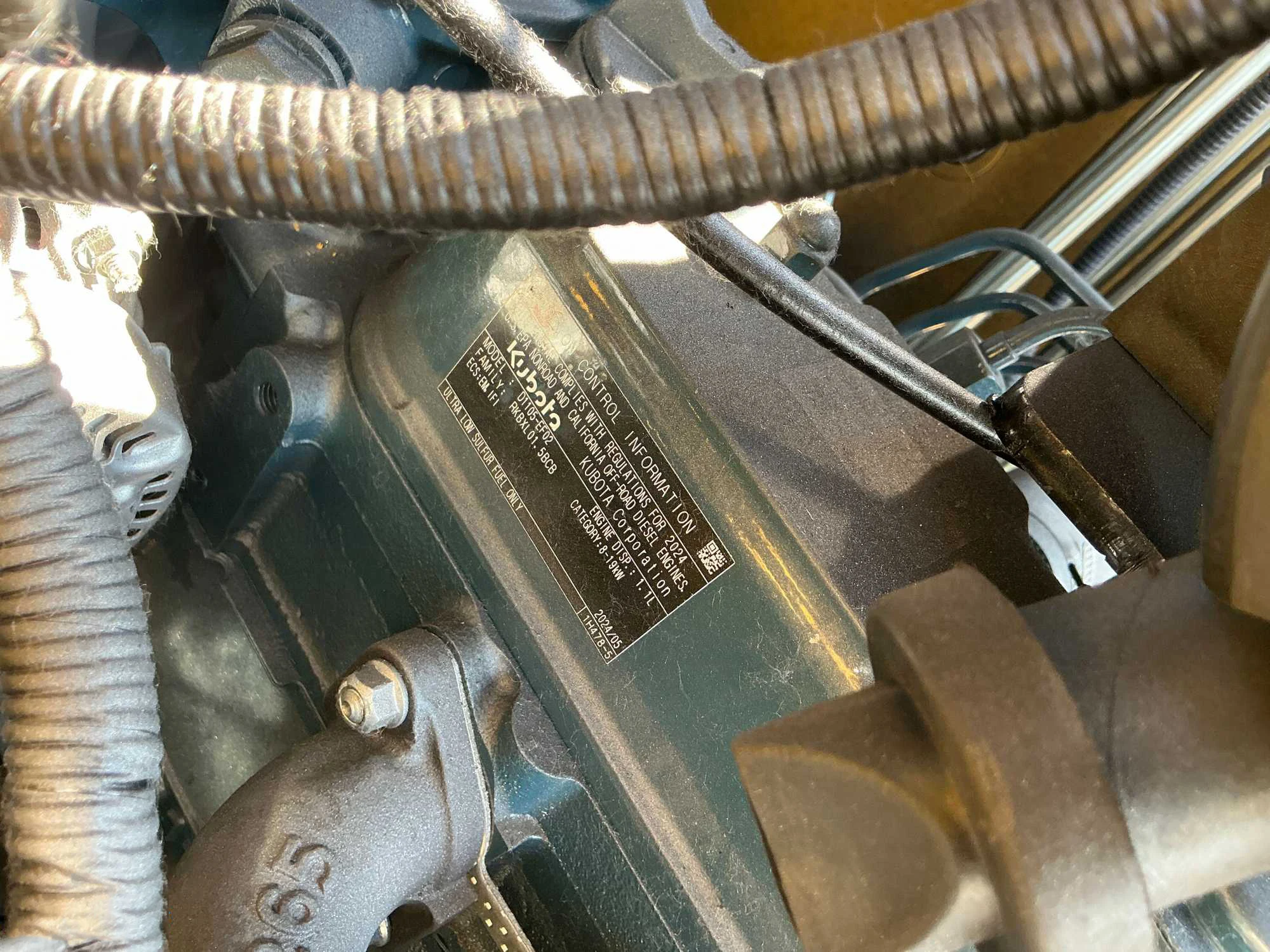

Engine Brand |
KubotaD1105 |
|||
Max. Horsepower(HP) |
27 |
|||

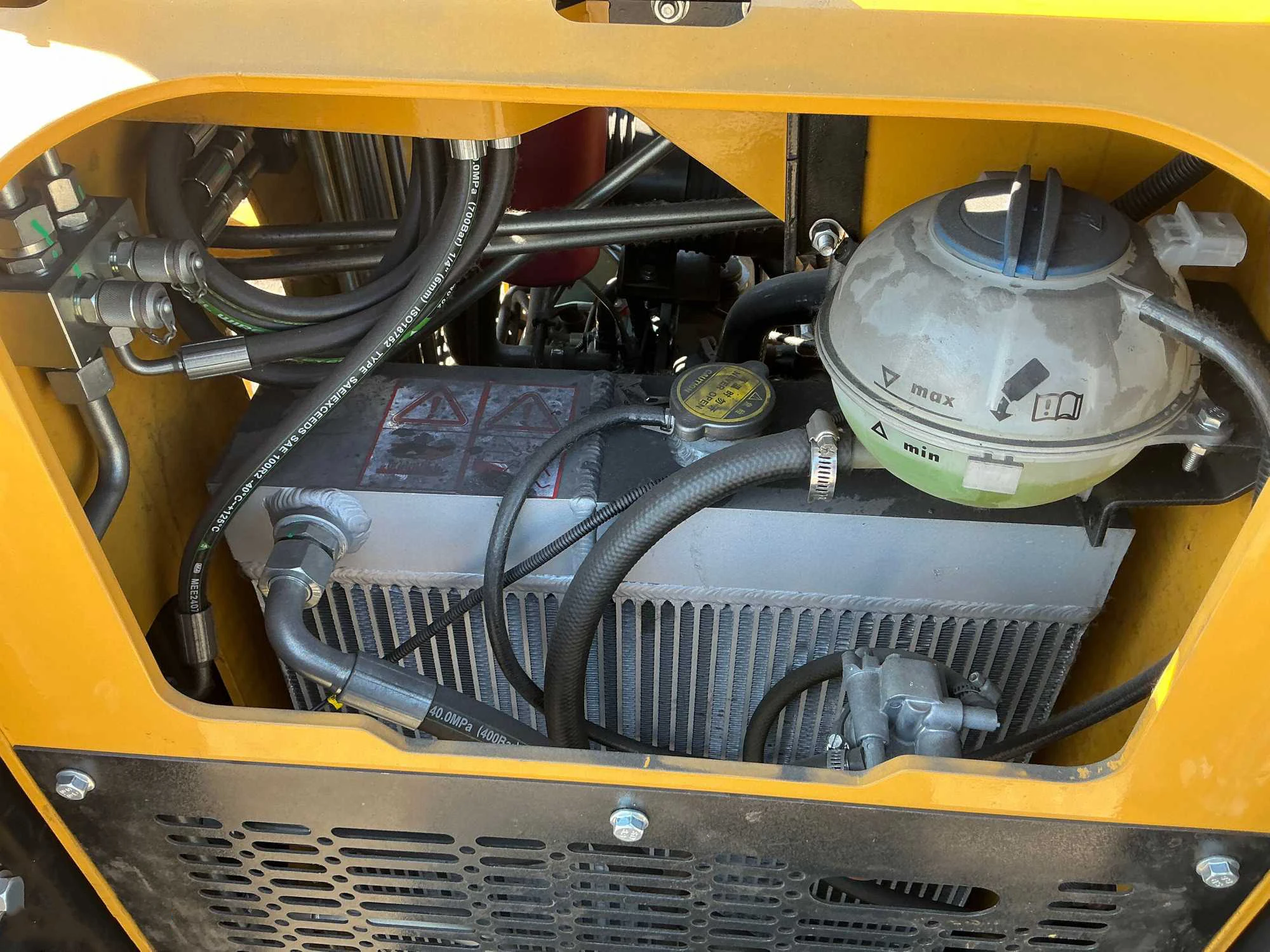

Cooling method |
Water cooling |
|||
Fuel Type |
Diesel |
|||
Fuel Grade |
0/-10# |
|||
Theoretical fuel consumption(L/h） |
5.1 |
|||

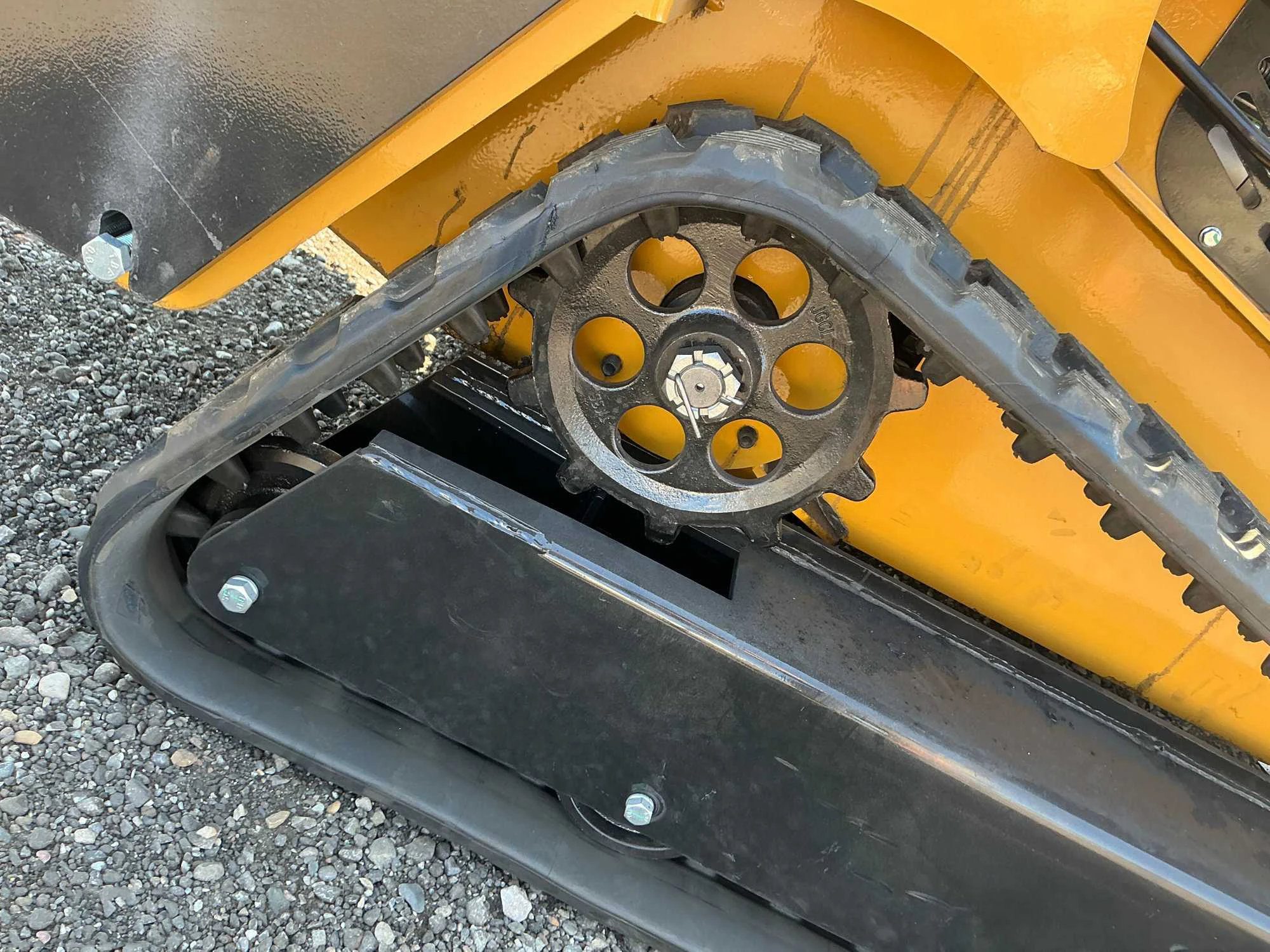

Tracks |
||||
△-Rubber (bandwidth*pitch*number of sections) |
200*72*45 |
|||
Fuel tank |
||||
Fuel tank(L) |
35 |
|||
Hydraulic oil tank(L) |
35 |
|||
Fuel tank |
||||
Fuel tank(L) |
90 |
|||
Hydraulic oil tank(L) |
10 |
|||
