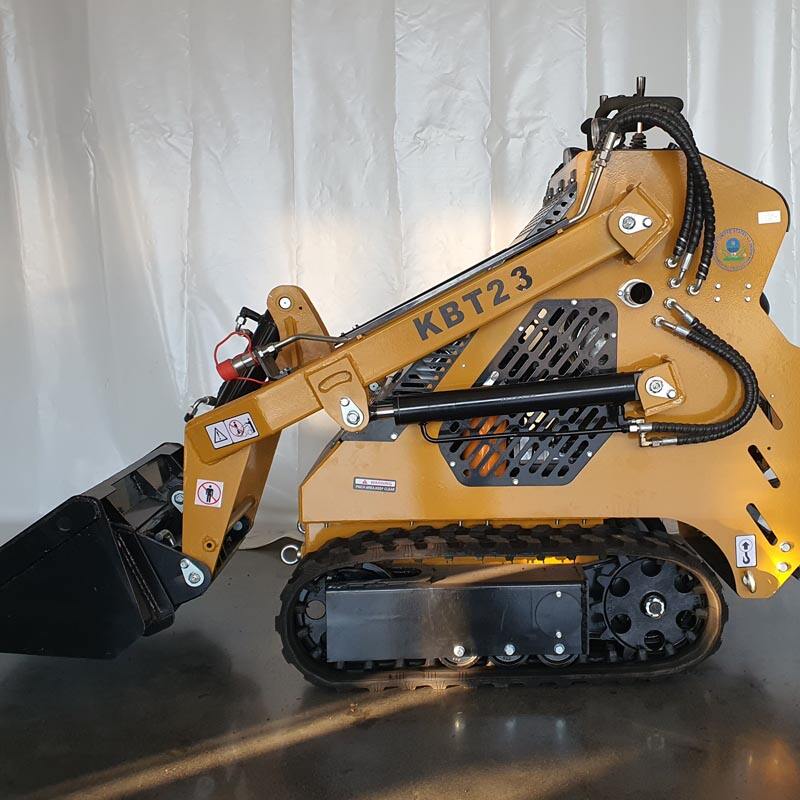

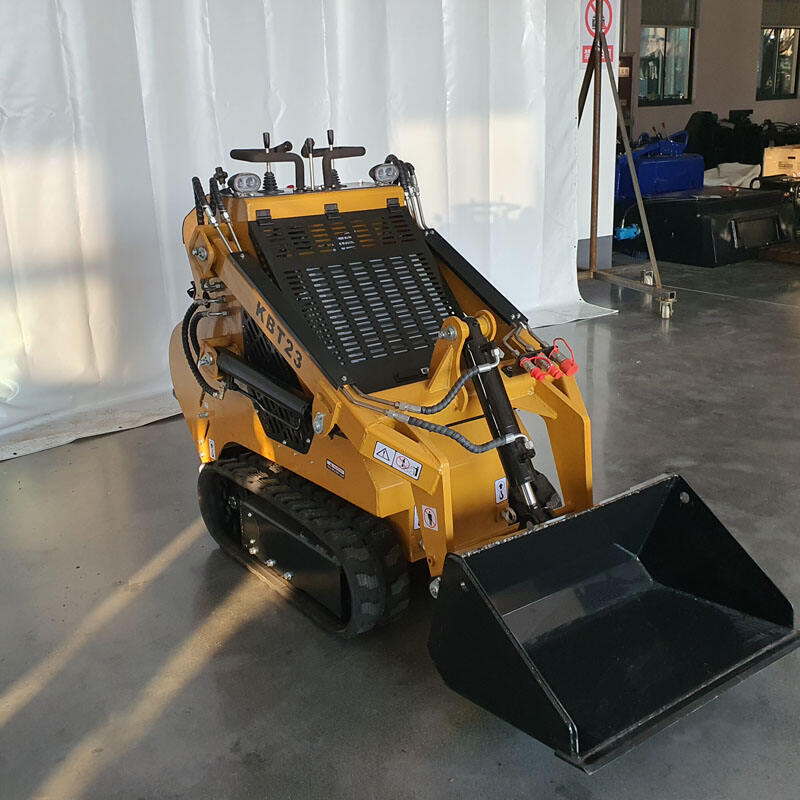

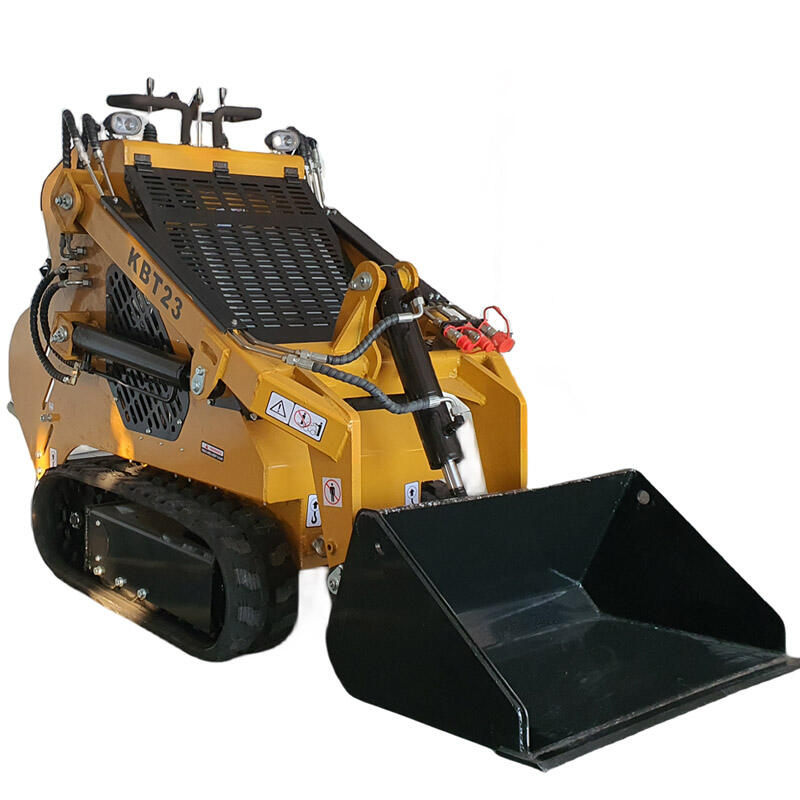

Learn about the KBT23 mini skid steer loader - a versatile power loader tailored to accomplish challenging tasks in tight spaces! This powerful machine is a compact 860kg machine that can effortlessly maneuver through tight project areas at speeds of up to 5.5km/hour and conquer slopes of up to 30°.
With a lifting weight of 375kg and a payload of 200kg, this compact skid steer loader can deftly handle heavy materials at all heights. Precision, efficiency and reliability are guaranteed with this versatile machine, ideal for farms, gardens, warehouses and a variety of work environments.
| Performance | |
| Max Load Capacity | 200 kg |

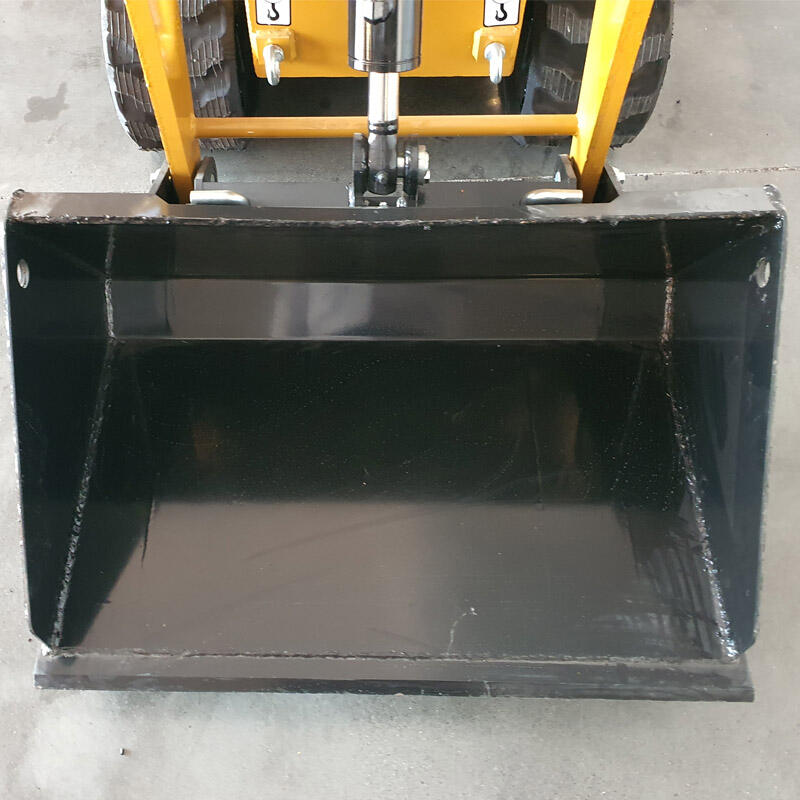

| Bucket Capacity | 0.15 m³ |
| Maximum Lift | 375 kg |
| Traveling Speed | 0-5.5 km/h |
| Rated Pressure | 16Mpa |
| Lifting Time | 4.3 s |
| Descent Time | 3.3 s |
| Tipping Time | 1.5 s |
| Maximum Angle of the climb | 30° |
| Total Weight | 860 kg |
| Engine parameter | |
| Engine | B&S engine |
| Engine type | gasoline, V-double cylinder |
| Output power | 16.8KW(23HP)/3600rpm |
| Fuel consumption | ≤6.7 L/h |
| Starting mode | Electric start |
| Tank capacity | |
| Fuel Tank Capacity | 25 L |
| Hydraulic Tank Capacity | 25L |
| Engine oil tank capacity | 1.7 L |
