Model Information Configuration Status √Standard, △Optional , ×None |

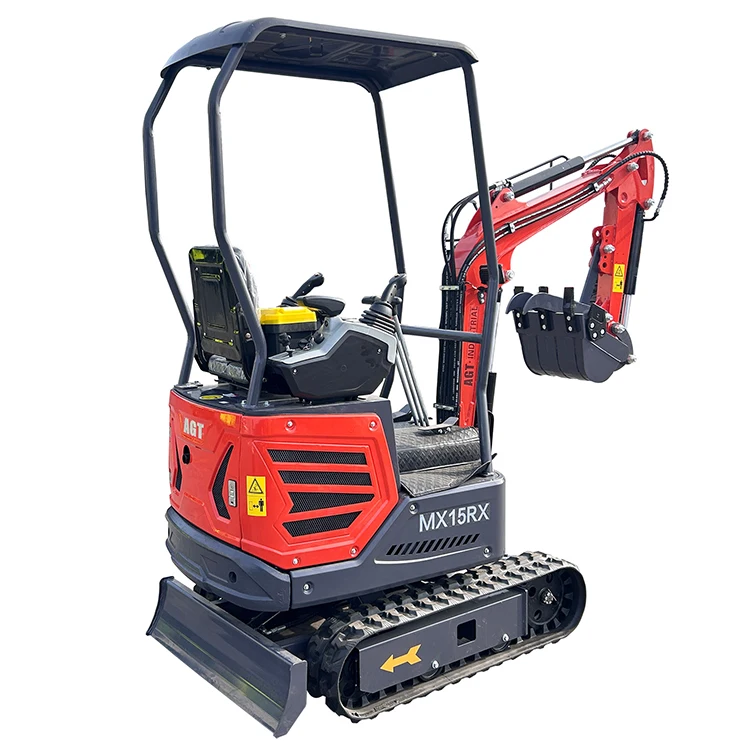

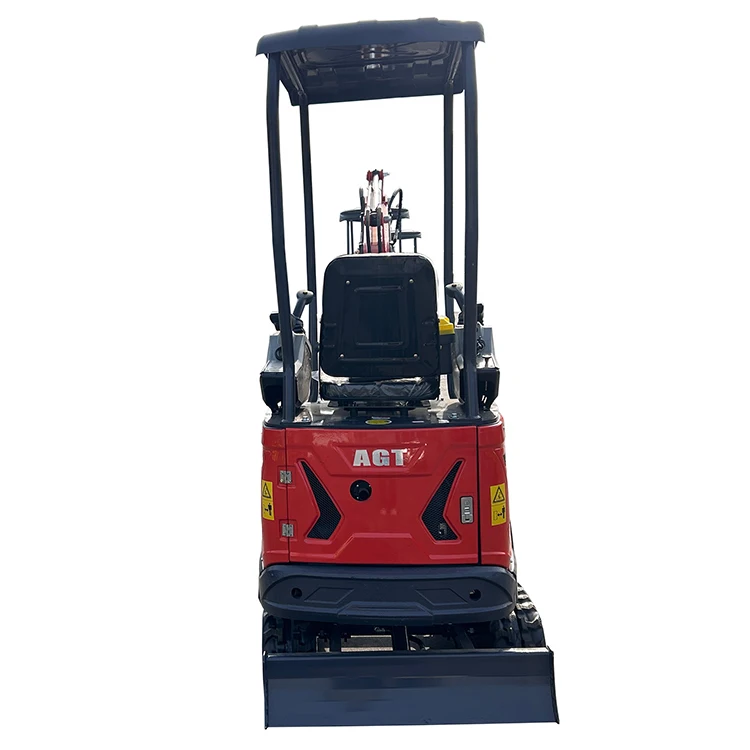

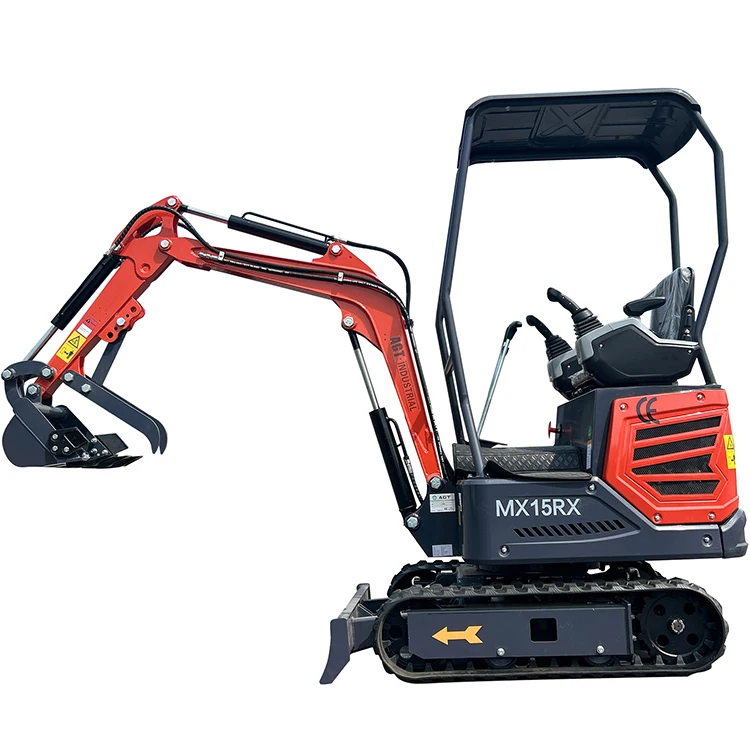

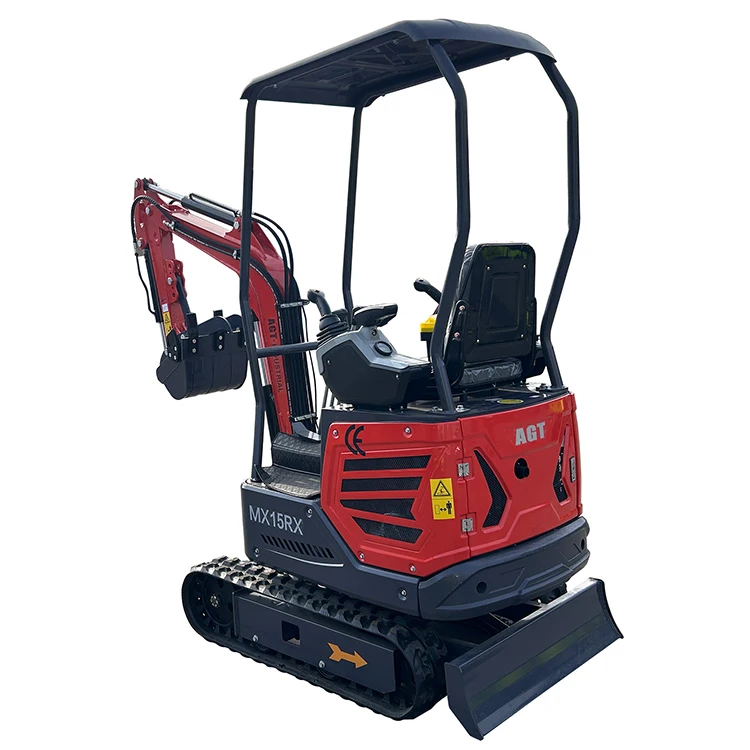

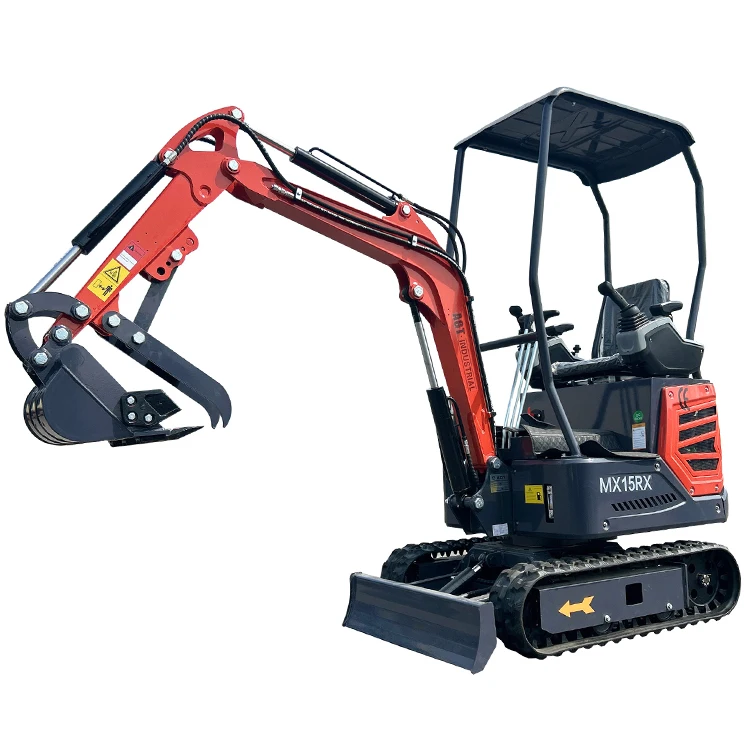

MX15RX
|
||
Basic Performance Parameters |
Weight(kg) |
940 |
|
Bucket capacity(m³): |
0.025 |
||
Walking speed Low/High speed(Km/h): |
0-1.8 |
||
Gradeability(%): |
30 |
||
speed of gyration（r/min) |
10 |
||
Maximum digging force of the bucket(KN): |
6 |
||
Maximum digging force of boom(KN): |
4 |
||
A Maximum excavation height(mm): |
2583 |
||
B Maximum unloading height(mm): |
1742 |
||
C Maximum Digging Depth(mm): |
1769 |
||
D Maximum vertical excavation depth(mm): |
1638 |
||
E Maximum digging radius(mm): |
3041 |
||
F Minimum radius of gyration(mm): |
1440 |
||
G Minimum gyration radius of the tail(mm): |
828 |
||
H Maximum lifting height of bulldozer |
162 |
||
I Maximum digging height of bulldozer |
196 |
||
Size |
J Total length(mm): |
2882 |
|
K Total width(mm): |
962 |
||
L Total height(mm): |
2219 |
||
M Tread width(mm): |
900 |
||
N Track gauge(mm): |
762 |
||
Bulldozer width/height(mm): |
907/200 |
||
Engine |
Engine Brand： |
RATO |
|
Engine model: |
R420D |
||
Max Horsepower(ps): |
13.5 |
||
Maximum power(Kw): |
9.8 |
||
Maximum Rotation Speed(rpm): |
3600 |
||
Number of cylinders: |
1 |
||
Cooling method: |
forced air cooling |
||
Engine oil change volume(L): |
1.1 |
||
Fuel type: |
gasoline |
||
Fuel label: |
92# |
||
Hydraulic System |
Main pump type/model: |
6＋3 |
|
Main pump brand： |
Tianjin Walking |
||
Rated set pressure(Mpa): |
16 |
||
Max. flow rate of main pump(L/min): |
21.6 |
||
multi-way valve： |
8-way semi hydraulic control multi way valve |
||
Multi way valve brand： |
Boxin |
||
Rated set pressure(Mpa): |
16 |
||
Walking hydraulic motor type: |
BMER3-350 |
||
Walking Motor Brand： |
orbit motor |
||
Motor Displacement: |
350 |
||
Rotary hydraulic motor type: |
BM1-315 |
||
Displacement: |
315 |
||
Track |
〇-Rubber (track width * pitch * number of sections): |
180*72*37 |
|
cab |
|||
Configuration |
ceiling |
● |
|
armrest |
● |
||
Thumb clip |
● |
||
Counterweight |
● |
||
Tensioning form |
Mechanical tensioning |
||
Tank |
fuel tank(L): |
6.6 |
|
hydraulic tank（L） |
15.8 |
||
