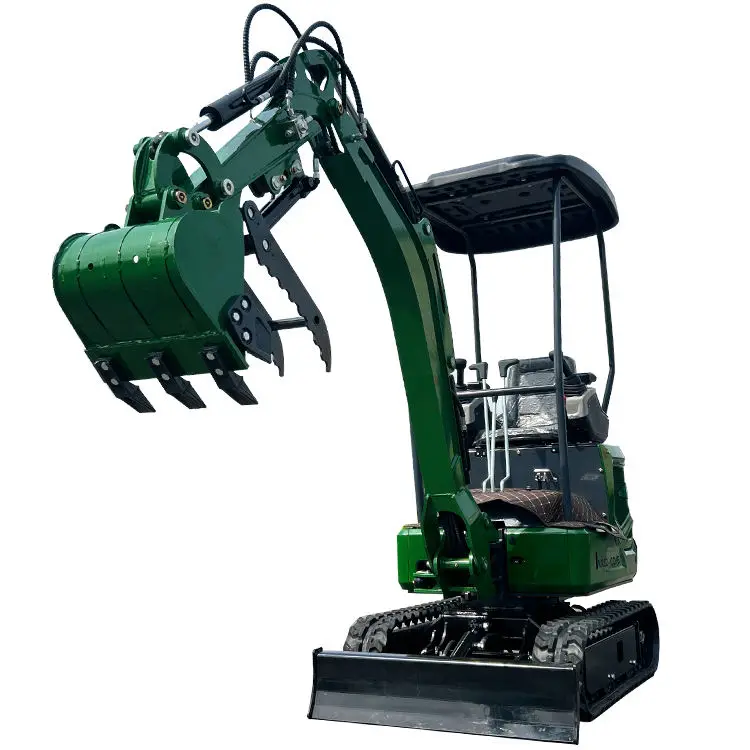

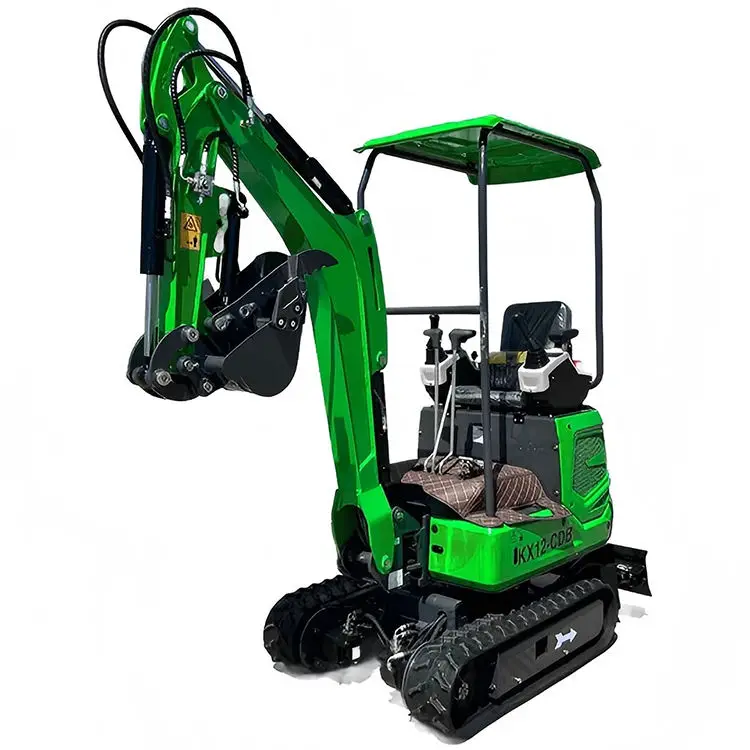

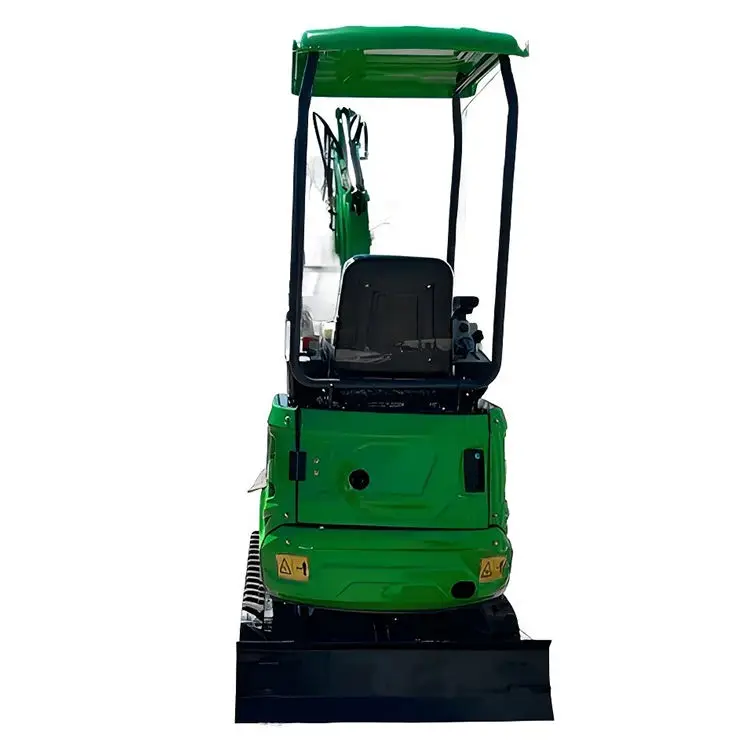

Cheap USA Stock 1 Ton B&S EPA Engine Mini Excavator with Hydraulic Thumb Clip Side Swing and Pilot System |KX12-CDB, China Cheap USA Stock 1 Ton B&S EPA Engine Mini Excavator with Hydraulic Thumb Clip Side Swing and Pilot System |KX12-CDB Manufacturers, Suppliers, Factory - Yancheng Cross Machinery Manufacture Co.,Ltd.

Specification

Model Information Configuration Status √Standard, △Optional , ×None			XK12-CD(B)
Basic Performance Parameters	Bucket capacity(m³):	0.03
		Walking speed Low/High speed(Km/h):	0-1.8
		Gradeability(%):	11
		A Maximum excavation height(mm):	2900
		B Maximum unloading height(mm):	2100
		E Maximum digging radius(mm):	3250
		F Minimum radius of gyration(mm):	1470
		G Minimum gyration radius of the tail(mm):	800
		H Maximum lifting height of bulldozer	190
		I Maximum digging height of bulldozer	190
Size	J Total length(mm):	3240
		K Total width(mm):	990
		L Total height(mm):	2200
		M Tread width(mm):	930
		N Track gauge(mm):	810
		Bulldozer width/height (mm):	950/235
Engine	Engine Brand：	B&S
		Max Horsepower(ps):	13.5HP
		Maximum power(Kw):	9.8
		Maximum Rotation Speed(rpm):	3600
		Number of cylinders:	1
		Cooling method:	forced air cooling
		Engine oil change volume(L):	1.1
		Fuel type:	gasoline
		Fuel label:	95#
		Theoretical fuel consumption(L/h):	0.5-1.2
Hydraulic System	Main pump type/model:	gear pump/06
		Main pump brand：	Tianjin travel
		Rated set pressure(Mpa):	16
		Max. flow rate of main pump(L/min):	21.6
		multi-way valve：	8-way multi way valve
		Multi way valve brand：	Tai Heng
		Rated set pressure(Mpa):	16
		Walking hydraulic motor type:	BM6-315
		Walking Motor Brand：	Cohen/Liyuan
		Motor Displacement:	315
		Rotary hydraulic motor type:	BM2-315
		Displacement:	315
Track	〇-Steel (track width * pitch * number of sections):	1807237
Configuration	ceiling	●
		side swing	●
		chassis extension	●
		Tensioning form	Mechanical tensioning
Tank	fuel tank(L):	5.5
Tank		hydraulic tank（L）	18

Mini Excavator
