CE/EPA Compact Skid Steer Mini Loader Three Cylinder Kubota 902 Engine Front Loader, China CE/EPA Compact Skid Steer Mini Loader Three Cylinder Kubota 902 Engine Front Loader Manufacturers, Suppliers, Factory - Yancheng Cross Machinery Manufacture Co.,Ltd.

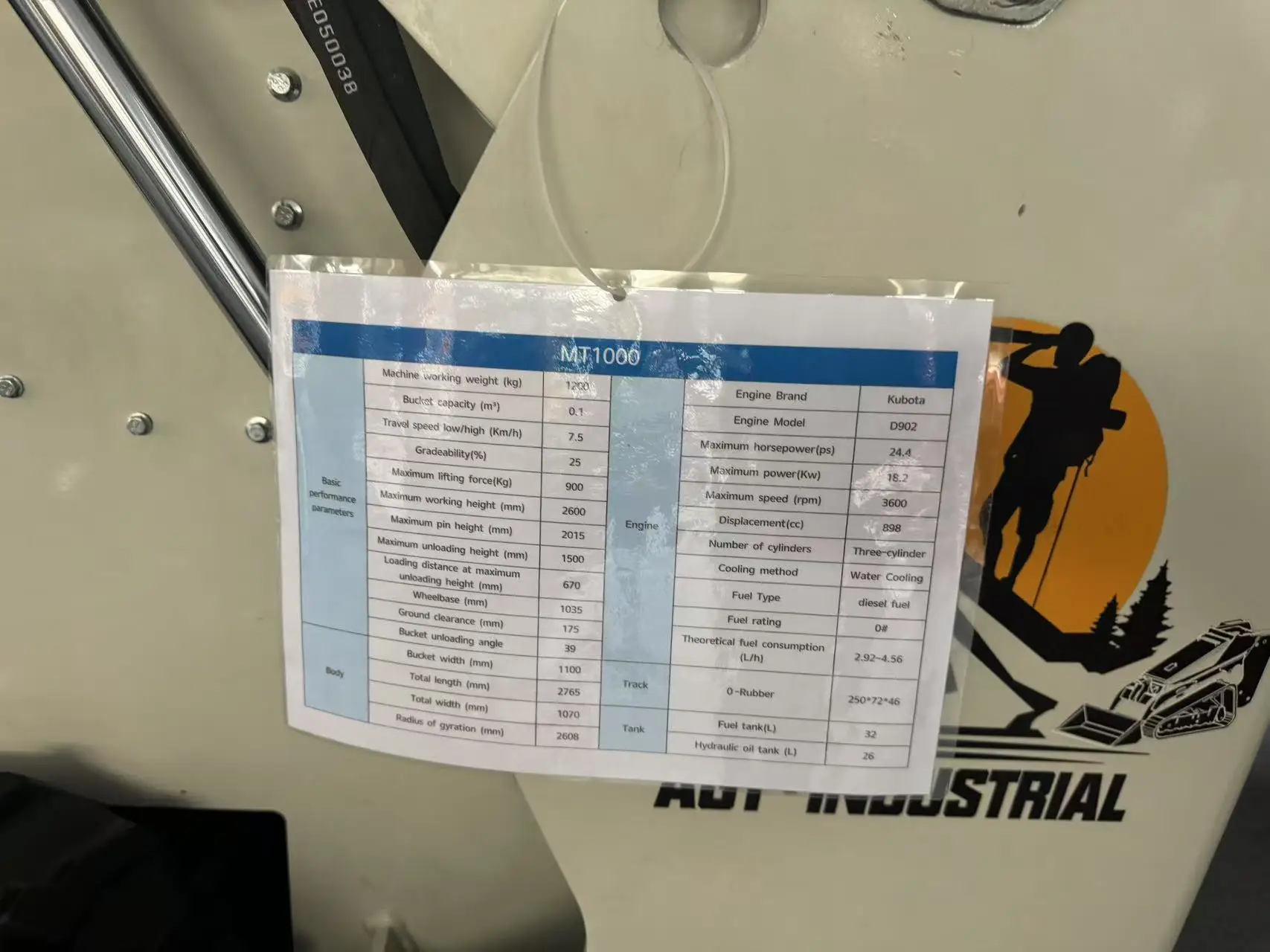

Specification

MT1000
Basic Performance Parameters	Weight(kg)	1200
		Bucket capacity(m³):	0.1
		Walking speed Low/High speed(Km/h):	7.5
		Gradeability(%):	25
		Maximum lifting force(Kg):	900
		Maximum working heightC(mm):	2600
		Maximum pin heightB(mm):	2015
		Maximum unloading heightA(mm):	1500
		Load distance at maximum unloading heightG(mm):	670
		Tread widthH(mm):	1035
		Ground clearanceF(mm):	175
		Bucket Dumping angleL	39°
Size	Bucket widthE(mm):	1100
		Total lengthJ/K(mm):	2765
		Total widthN(mm):	1070
		Boarding widthO(mm):	812
		Total heightD(mm):	1223
		radius of gyrationM(mm):	2608
Engine	Engine Brand：	Kubota
		Engine model:	D902
		Max Horsepower(ps):	24.4
		Maximum power(Kw):	18.2
		Maximum Rotation Speed(rpm):	3600
		Displacement(cc):	898
		Number of cylinders:	Three cylinders
		Cooling method:	water-cooling
		Fuel type:	diesel
		Fuel label:	0#
		Theoretical fuel consumption(L/h):	2.92~4.56
Hydraulic System	Main pump type/model:	piston pump
		Rated set pressure(Mpa):	17.5
		Max. flow rate of main pump(L/min):	13
		multi-way valve：	4-way semi hydraulic control
		Rated set pressure(Mpa):	16
		Walking hydraulic motor type:	BMER3-350
		Walking Motor Brand：	Orbital Motor
		Motor Displacement:	350
Track	〇-Rubber (track width * pitch * number of sections):	2507246
Configuration	armrest	●
Configuration		Tensioning form	Hydraulic tensioning
Tank	fuel tank(L):	32
Tank		hydraulic tank（L）	26

Products Description

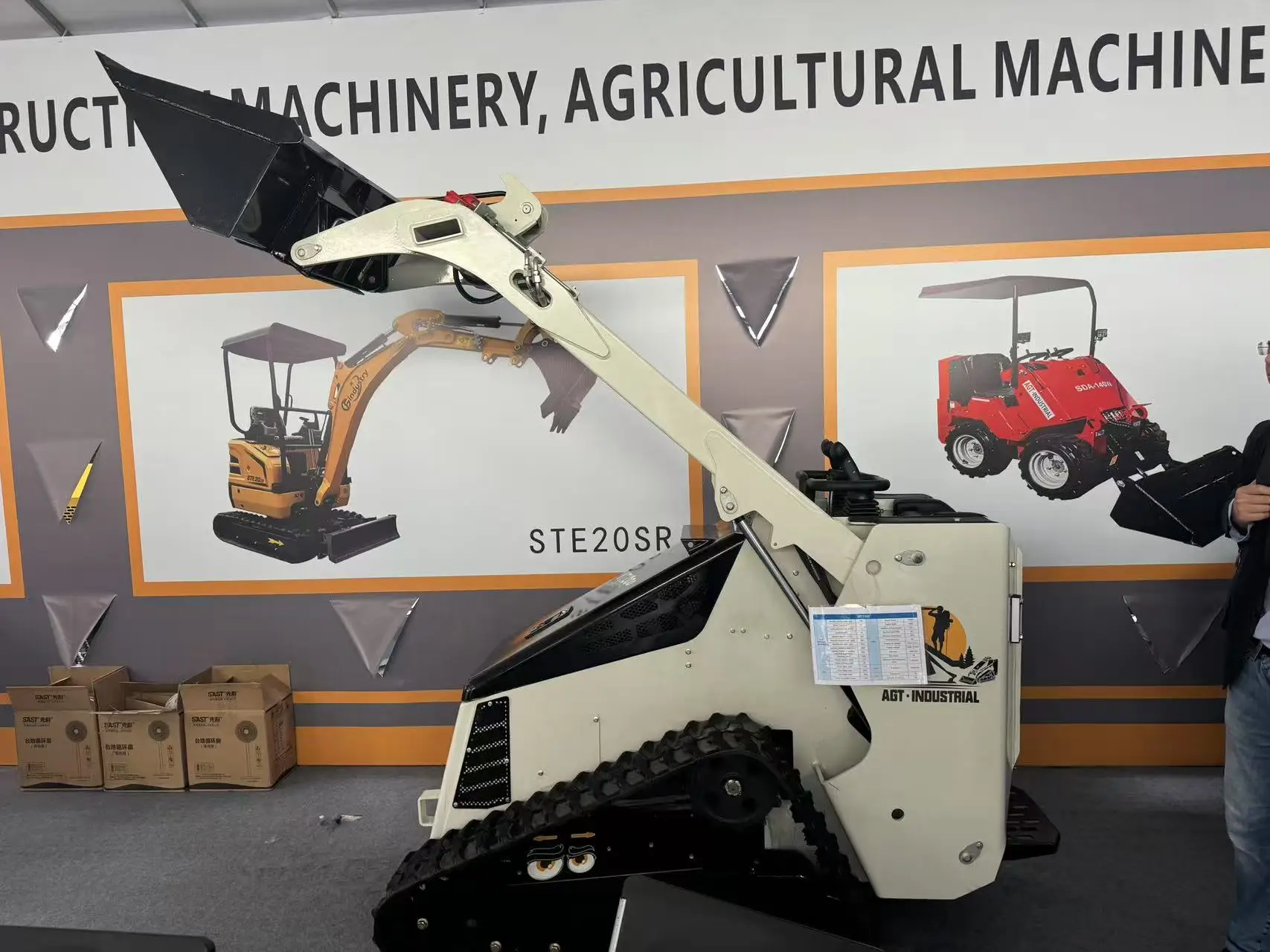

Mini Skid Steer Loader
